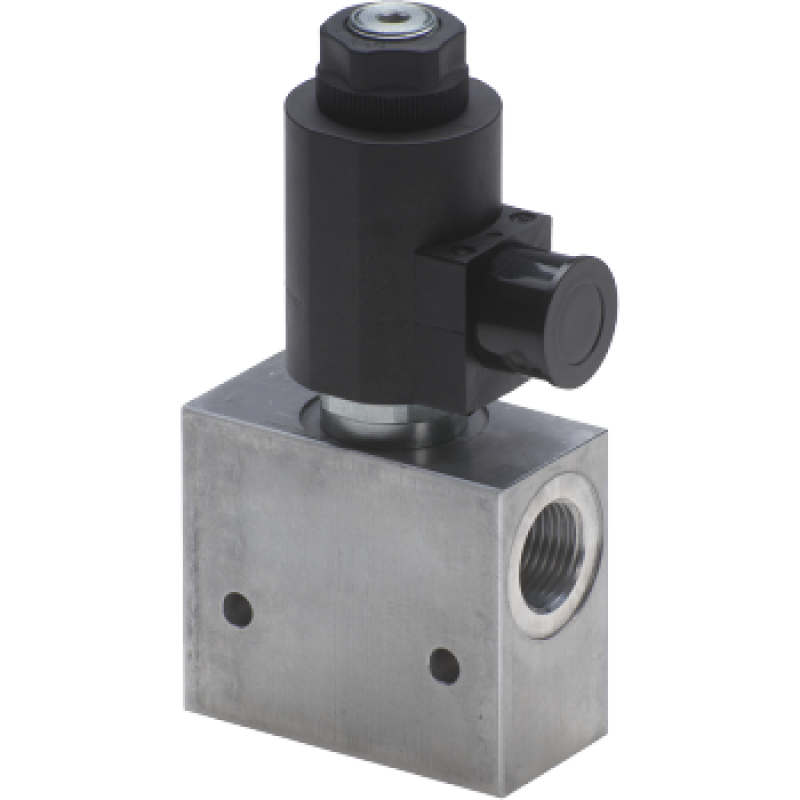

Normally closed 2 ways valve with double pilot check valve VCFDA1224NC
Click image to enlarge
Two-way valve with double check valve

Normally closed 2 ways valve with double pilot check valve VCFDA1224NC
Model: VCFDA1224NC
  • Model:
    VCFDA1224NC
Maximum pressure (bar)220
Maximum flow (L/min)30
Normal stateNormally closed
Coil voltage (V)24
Cartridge thread7/8"-14UNF-2A
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The VCFDA1224NC is a two-way valve with double check valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Two-way valve with double check valve
Cartridge thread
7/8"-14UNF-2A
Port thread
1/2" BSP
Coil voltage (V)
24
Electrical supply
DC
Maximum flow (L/min)
30
Maximum pressure (bar)
220
Normal state
Normally closed
Number of ways
2

Technical documentation

Official technical documentation (PDF).

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Two-way valve with double check valve
Normal state Normally closed
Number of ways 2
Maximum pressure (bar) 220
Maximum flow (L/min) 30
Coil voltage (V) 24
Electrical supply DC
Cartridge thread 7/8"-14UNF-2A
Port thread 1/2" BSP

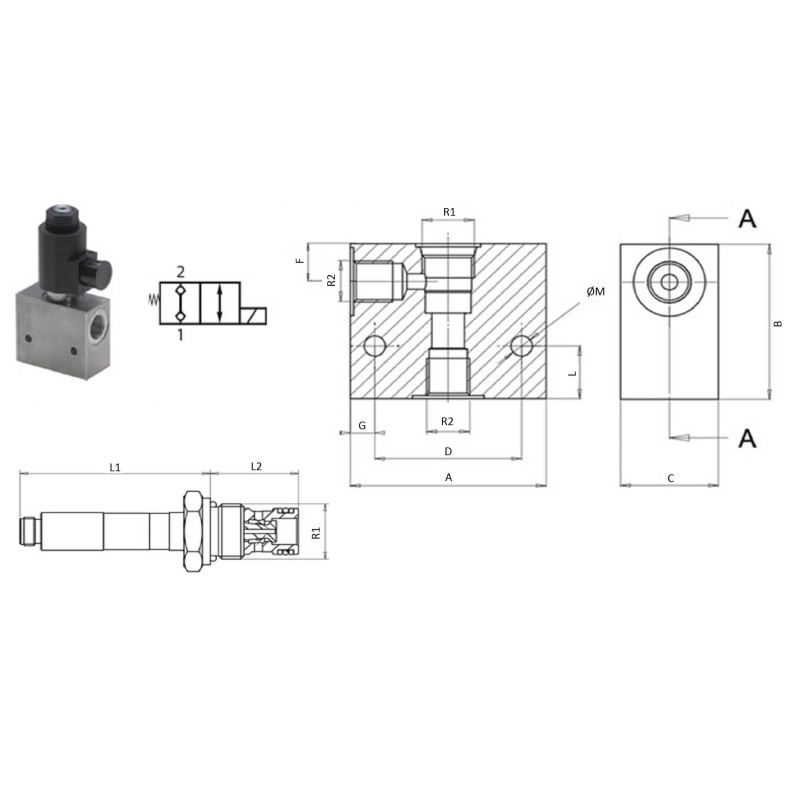

Original specifications — unverified
R2 1/2'' BSP
L 15
B 50
F 17,5
G 7,5
D 45
C 30
A 60
L1 72,9
L2 32
ØM 6,5
