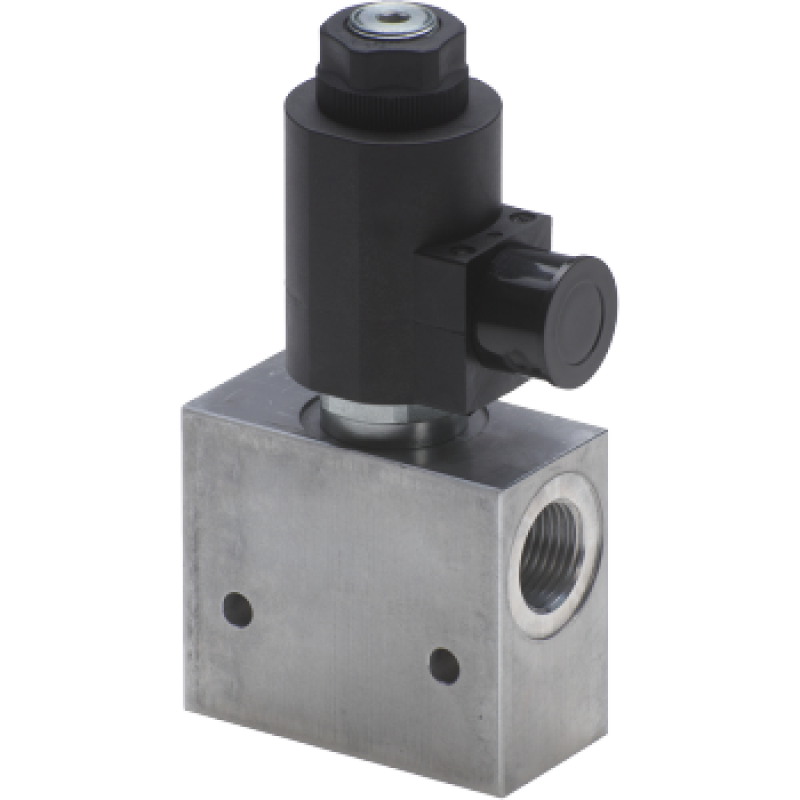

Normally closed 2 ways valve VCF38NC24CC
Click image to enlarge
Two-way solenoid valve

Normally closed 2 ways valve VCF38NC24CC
Model: VCF38NC24CC
  • Model:
    VCF38NC24CC
Maximum flow (L/min)40
Normal stateNormally closed
Coil voltage (V)24
Cartridge thread3/4"-16UNF-2A
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The VCF38NC24CC is a two-way solenoid valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Two-way solenoid valve
Cartridge thread
3/4"-16UNF-2A
Port thread
3/8" BSP
Coil voltage (V)
24
Electrical supply
DC
Maximum flow (L/min)
40
Normal state
Normally closed
Number of ways
2

Technical documentation

Official technical documentation (PDF).

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Two-way solenoid valve
Normal state Normally closed
Number of ways 2
Maximum flow (L/min) 40
Coil voltage (V) 24
Electrical supply DC
Cartridge thread 3/4"-16UNF-2A
Port thread 3/8" BSP

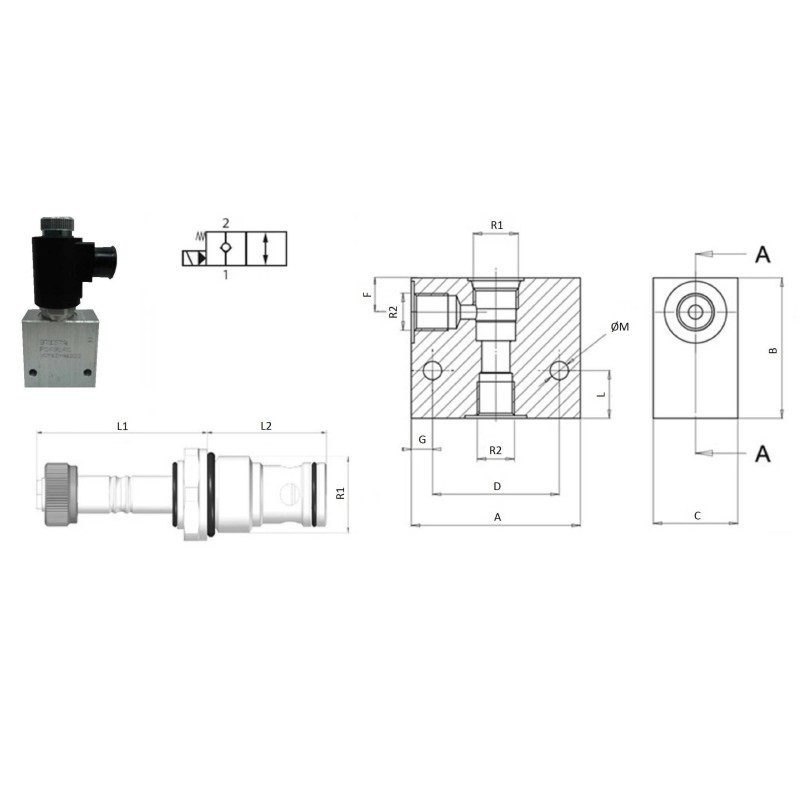

Original specifications — unverified
R2 3/8'' BSP
L 15
B 50
F 14
G 7,5
D 45
C 30
A 60
L1 59,5
L2 27,5
ØM 6,5
