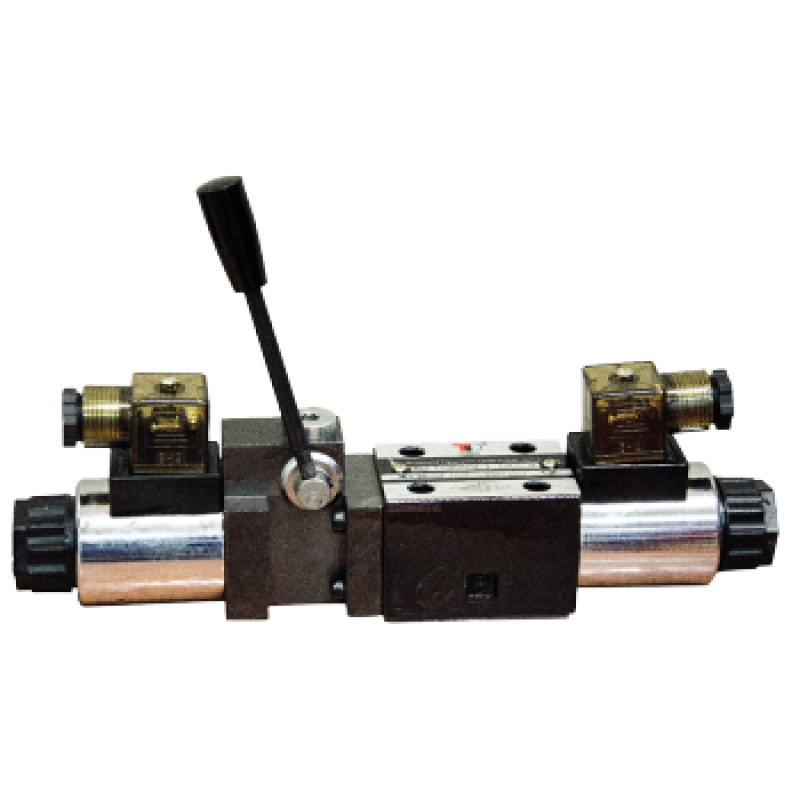

KVNG6EM-1-110CA H is a TrAle NG-6 hydraulic directional valve with solenoid with manual lever actuation and catalog spool code 1.
The catalog specifies a maximum flow of 60 L/min and a maximum pressure of 315 bar. The coil supply is 110 V AC.

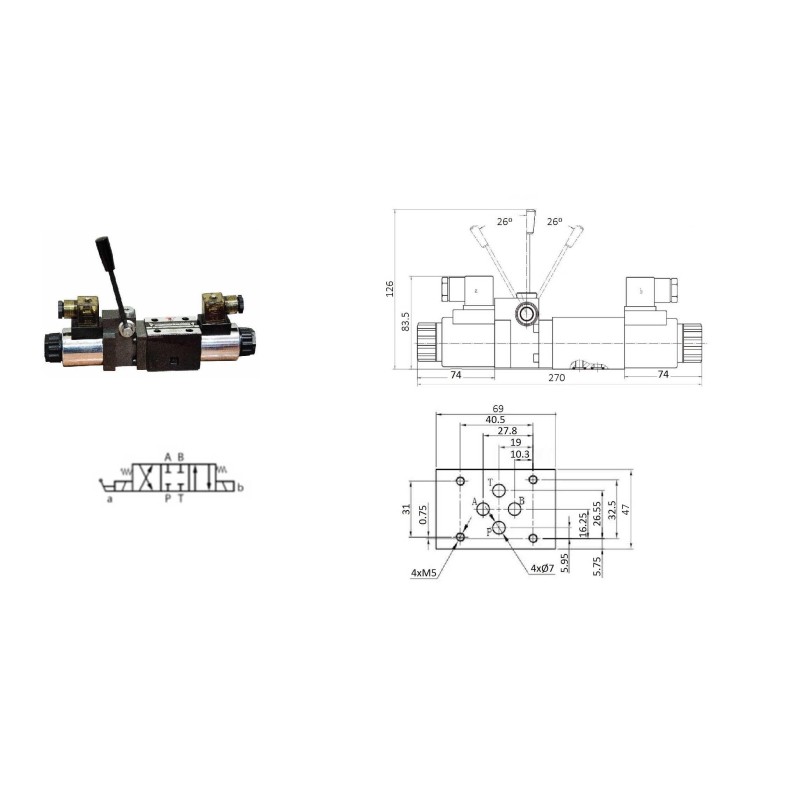

The hydraulic symbol and model table are shown in the Official technical documentation (PDF). Brand: TrAle; catalog publisher: DICSA.
Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
