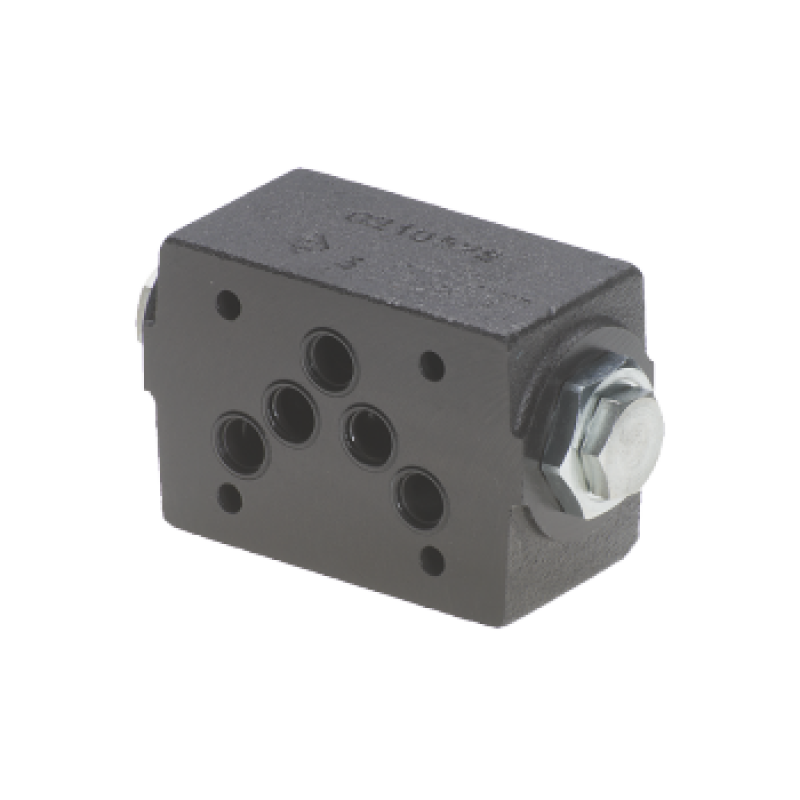

NG10 Pilot operated double check valve CHM5-D/10

Model: CHM5-D/10
Maximum pressure (bar)320

Description

NG10 Pilot operated double check valve CHM5-D/10. The valve controls reverse flow through the stated connection arrangement.

Model specifications: Maximum pressure (bar): 320.

Technical documentation

NG10 Pilot operated double check valve. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Valve
Maximum pressure (bar) 320
Equipment family Modular Elements for NG10
Original specifications - unverified
Max. pressure, bar 320
Pilotratio 5,8 : 1
PointsA-B A - B
Size NG-10
