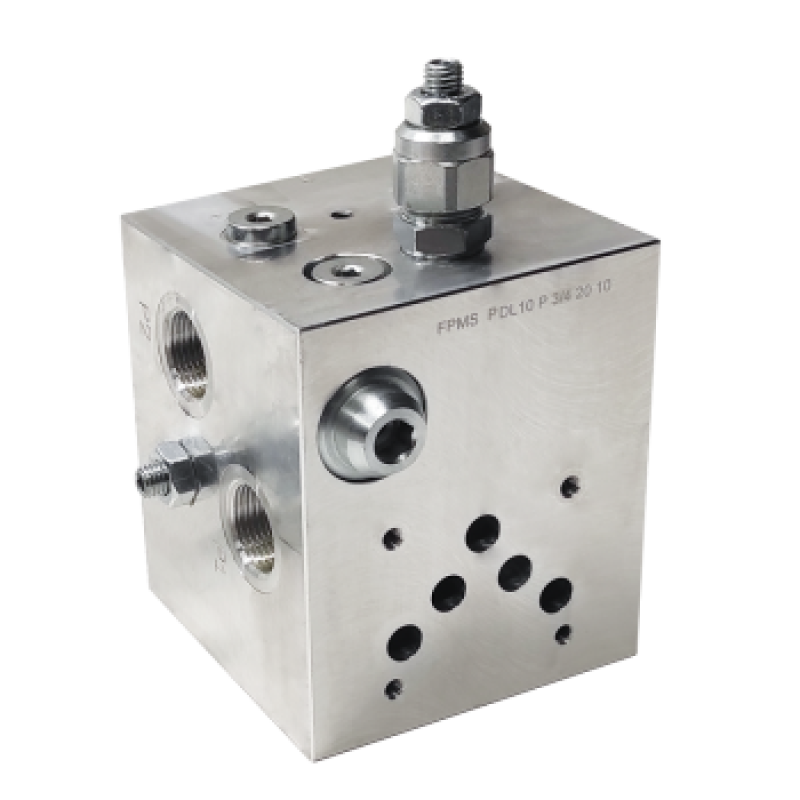

NG10 High/low pressure blocks PMS-PDL10-P-3/4 20-1

Model: PMS-PDL10-P-3/4 20-1

Description

NG10 High/low pressure blocks PMS-PDL10-P-3/4 20-1. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.

Technical documentation

NG10 High/low pressure blocks VS ¾”. Series reference only: this document does not list the exact imported model. It must not be used to confirm model-specific ratings or dimensions.

Full specifications

Technical specifications
Component type Valve
Equipment family Subplates for NG10
Original specifications - unverified
Max. pressure, bar 300
Flow max, l/min 150
Reg.rate(bar) 20-100
Size NG-10
