Valve

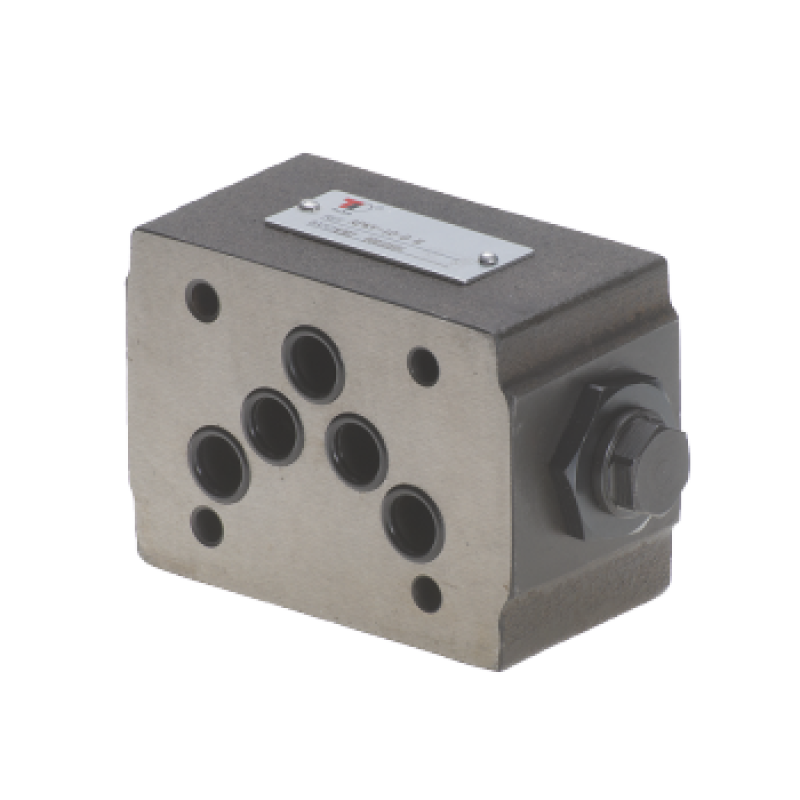

NG10 Check valve in B AKV-10-B H
Model: AKV-10-B H
Maximum pressure (bar)315
NG10 Check valve in B AKV-10-B H. The valve controls reverse flow through the stated connection arrangement.
Model specifications: Maximum pressure (bar): 315.
NG10 Check valve in B. The exact model is listed on page 2.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 315 |
| Equipment family | Modular blocks for NG10 |
| Original specifications - unverified | |
| Max. pressure, bar | 315 |
| Flow max, l/min | 100 |
| D | 18,5 |
| E | - |
| F | 16 |
| G | 55 |
| H | 27,5 |
| L | 80 |
| L1 | 6 |
| Size | NG-10 |
