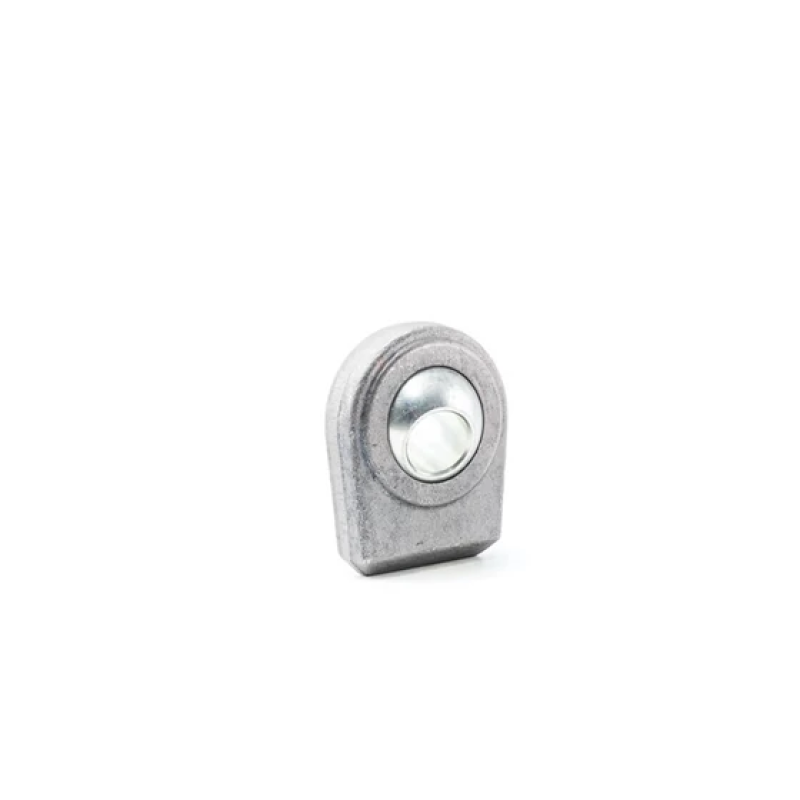

Naldoni e Biondi NBTSFI4499 is a complete TS-FI spherical rod end for weld-on mounting. The complete joint includes a spherical insert within its housing and is intended for weld-on mounting.
Production material designation: C40 steel. Bearing contact: steel on steel. A separate insert grade or material certificate is not specified. Dimension A is the bearing bore; other dimensions retain the dimensional drawing letters.
Available on request, subject to a minimum order batch. No load, cylinder pressure, articulation angle or lubrication specification is assigned.
Full specifications
Technical specifications
Product type
Weld-on spherical rod end
Mounting
Weld-on
Construction
Complete ball-joint end with spherical insert
Material documentation reference
Manufacturer production-material designation: C40 steel; no separate insert grade or material certificate established.
Bearing bore A (mm)
19
Bearing contact
Steel on steel
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBTSFI4499
Manufacturer production note
Available on request, subject to a minimum order batch. Batch quantity is not specified.
