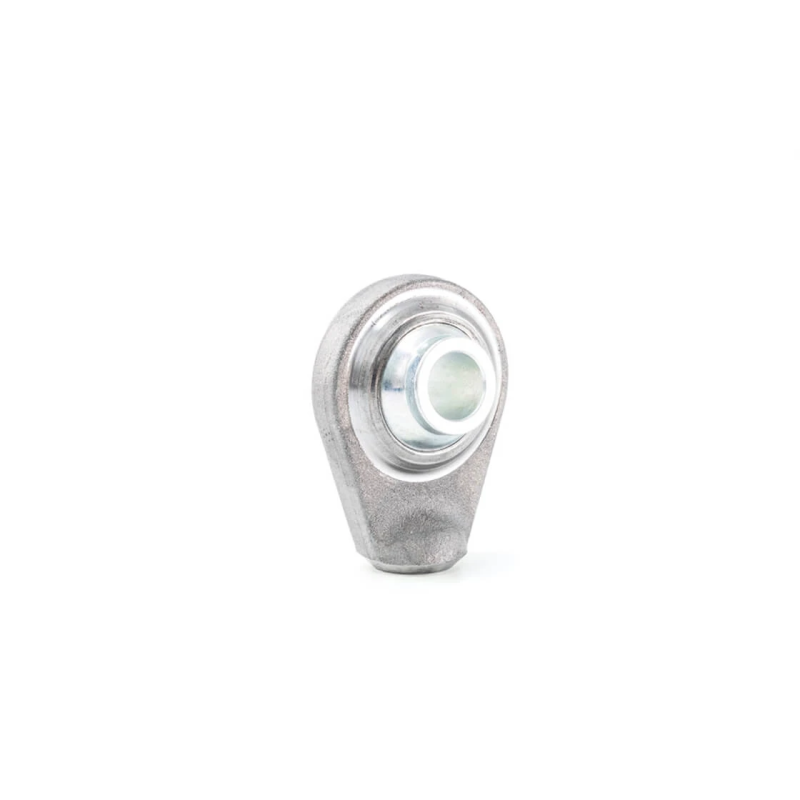

Naldoni e Biondi NBTSBT7791 is a complete TS-BT spherical rod-end component for a weld-on hydraulic-cylinder connection. The construction includes the spherical insert inside its housing and specifies steel-on-steel contact. Bearing bore A is 25.4 mm, catalogue width B is 51 mm and the listed mass is 1.68 kg.
Material designation: C40 steel. A separate insert grade is not specified.
No mounting thread is specified for this execution.
Available on request, subject to a minimum order batch.
Full specifications
Technical specifications
Product type
Weld-on spherical rod end
Mounting
Weld-on
Mounting detail documentation reference
A mounting thread is not specified for this article. The drawing shows a threaded feature, but the optional interface and detail dimensions are not specified.
Material
Steel
Construction
Complete ball-joint end with spherical insert
Material documentation reference
Production material designation: C40 steel. The insert steel grade and material certification are not specified.
Bearing bore A (mm)
25.4
Bearing contact
Steel on steel
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBTSBT7791
Manufacturer production note
Available on request, subject to a minimum order batch. Batch quantity is not specified.
