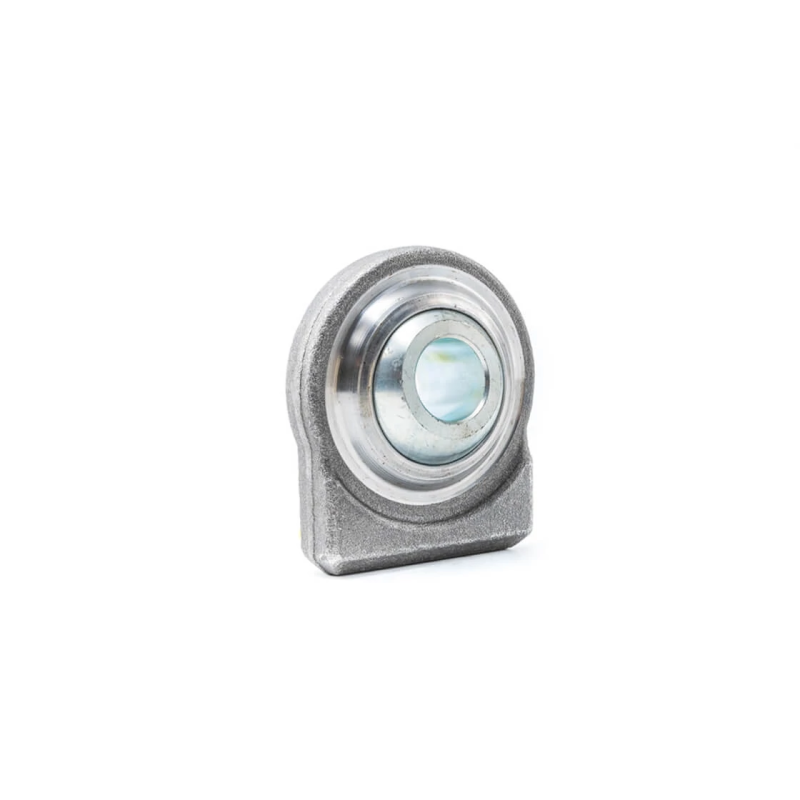

Naldoni e Biondi NBTSBR4503 is a complete TS-BR spherical cylinder rod-end component with an insert within its housing. The bearing bore A is 22.1 mm; the remaining dimensions retain the dimensional drawing letters.
Production material designation: C40 steel. Bearing contact: steel on steel. A separate insert grade and complete welded-assembly capacity are not specified.
Catalogue material: C40 steel. C45 zinc-plated steel is also listed for this article; confirm the supplied grade and finish.
Available on request, subject to a minimum order batch.
Full specifications
Technical specifications
Product type
Weld-on spherical rod end
Mounting
Weld-on
Material
Steel
Construction
Complete ball-joint end with spherical insert
Material documentation reference
Manufacturer production-material designation: C40 steel. A separate insert steel grade is not specified. The selected supplier labels this article C45 zinc-plated. These material/finish labels differ; the grade and finish of the actual supplied execution are not established.
Bearing bore A (mm)
22.1
Bearing contact
Steel on steel
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBTSBR4503
Manufacturer production note
On request on a minimum batch, as marked by the exact manufacturer row. Batch quantity is unspecified.
