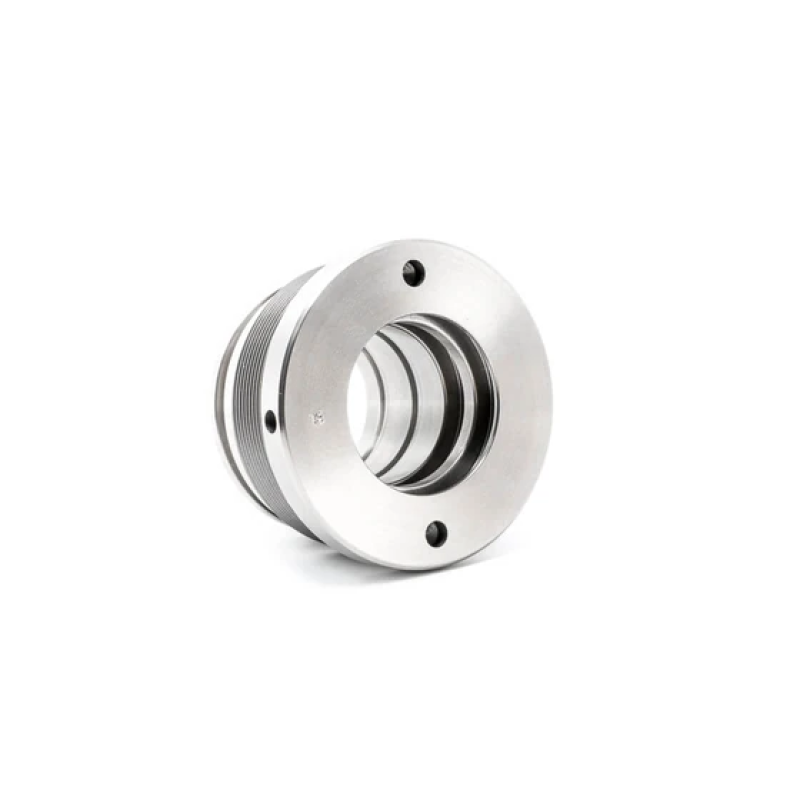

Naldoni e Biondi NBTM017015080 medium-length hydraulic cylinder head

Naldoni e Biondi NBTM017015080 is a medium-length headbush for hydraulic cylinder construction. Its production material designation is GG 25 cast iron. It has an 80 mm bore, 169 mm outside diameter, 82 mm overall length and M155 × 2 mounting thread.

Catalogue series pressure: 250 bar. The complete cylinder design determines the operating pressure rating. Select seals and guide bushes to suit the cylinder design.

Available on request, subject to a minimum order batch.
