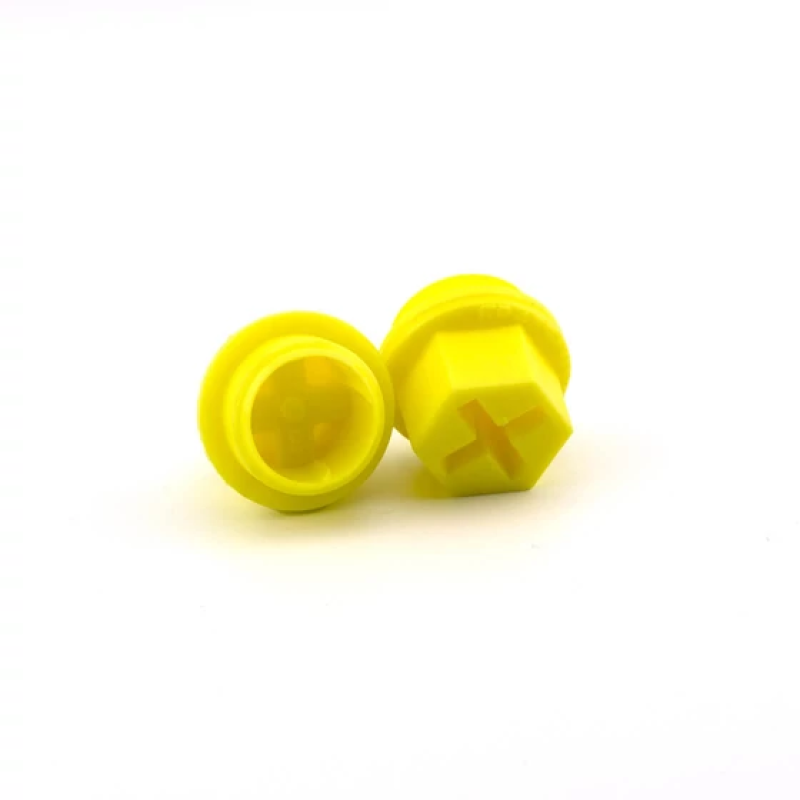

Naldoni e Biondi NBTFPLM2015 is a male-threaded protective plug in the NBTFPLM cylinder-parts family. The component uses Nylon PA 6 and an M20 × 1.5 metric thread. The construction has the thread on the outside of the lower shank: its hollow core is not a female threaded connection.
The plug protects the connection during handling and storage. It has no specified pressure-retaining service rating. Drawing dimensions: A as the outside diameter, B as the spanner dimension and C/D as separate height segments; no overall-height or pressure-sealing claim is specified.
Available on request, subject to a minimum order batch.
Full specifications
Technical specifications
Product type
Male-threaded protective plug
Thread standard
Metric
Thread gender
Male
Thread size F
M20 × 1.5
Material
Nylon PA 6
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBTFPLM2015
Manufacturer production note
On request on a minimum batch, as marked on current manufacturer catalogue; no current stock claim.
