Protective male plug

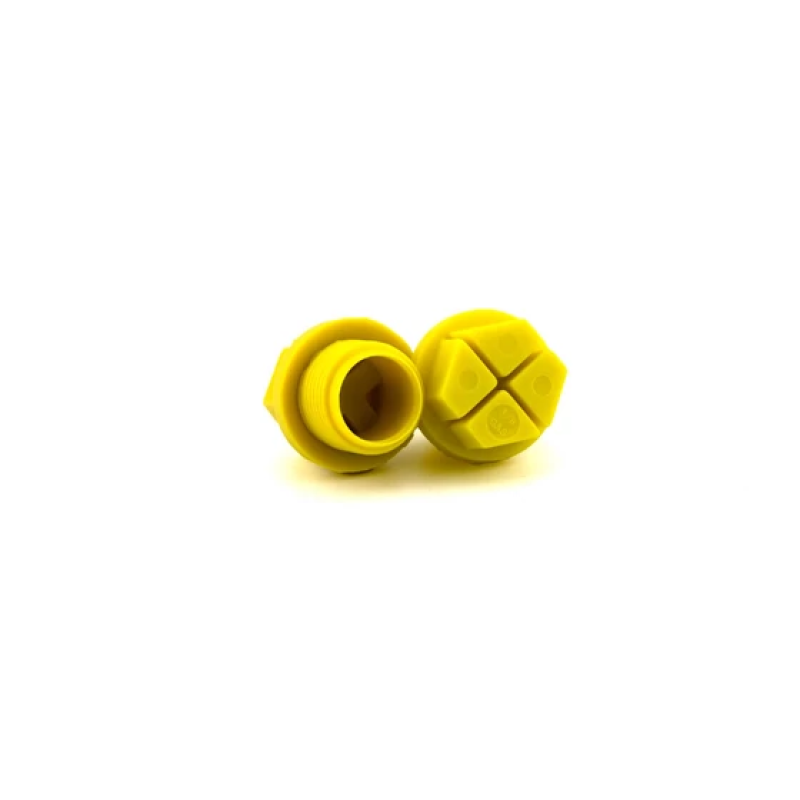

Naldoni e Biondi NBTFPLG3/8 protective male plug
Model: NBTFPLG3/8 · Naldoni e Biondi
Thread genderMale
MaterialNylon PA 6
Naldoni e Biondi NBTFPLG3/8 is a nylon male-thread protective plug in the NBTFPLG family. Material: Nylon PA 6. The external male thread fits into a female connection for protection during handling or storage; it has no specified pressure-retaining service rating. Refer to thread F and dimensions A/B/C/D in the technical drawing. Dimensions C and D do not specify a complete overall height. No seal, torque, temperature or load rating is specified.
| Technical specifications | |
| Product type | Protective male plug |
| Thread gender | Male |
| Thread size F | 3/8" |
| Material | Nylon PA 6 |
| Manufacturer | Naldoni e Biondi |
| Manufacturer part number | NBTFPLG3/8 |
| Product family | NBTFPLG |
| Catalogue dimension C (mm) | 11 |
| Catalogue dimension D (mm) | 9 |
| Mass (kg) | 0.004 |
| Outside diameter A (mm) | 22 |
| Spanner size B (mm) | 17 |
