Naldoni e Biondi NBT005504522 is a standard-series hydraulic cylinder guide head with a stepped rod passage and sealing seats.
Bore diameter B: 22 mm. Outside diameter C: 54 mm. Axial dimension E: 40 mm. Mounting thread: M49 × 1.5. Material: Cast iron GG 25.

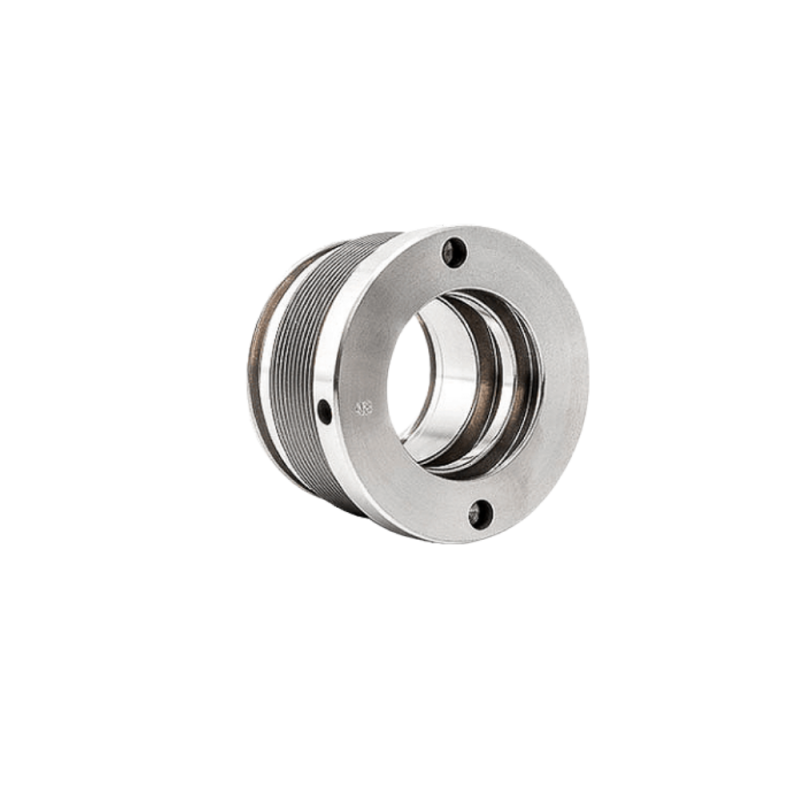

The image is a representative manufacturer photograph of the NBT series.
