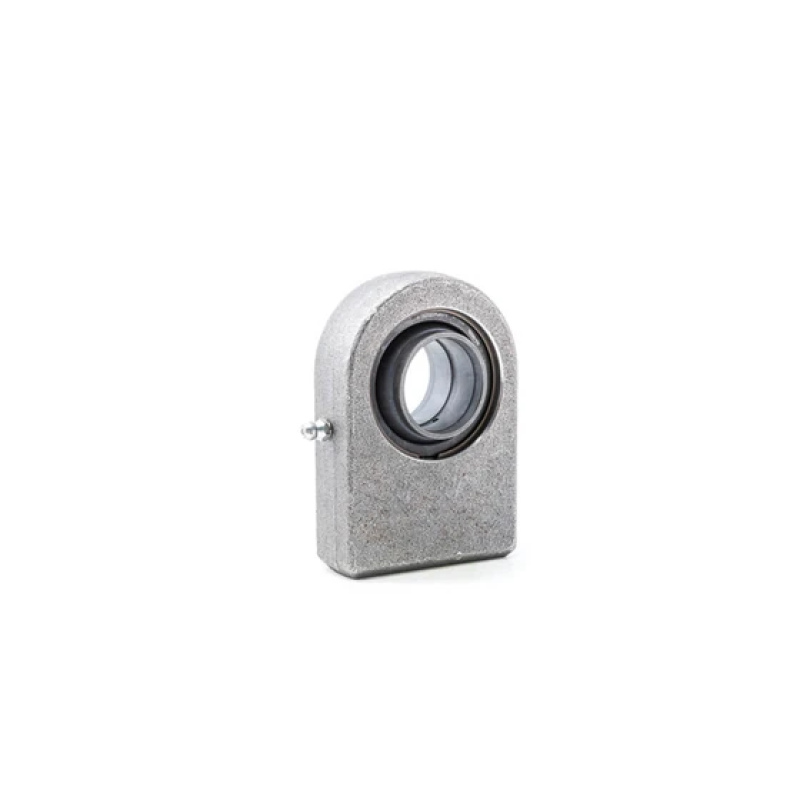

Naldoni e Biondi NBSN50L is a complete SN-L spherical joint end for weld-on cylinder rear-end mounting. The complete joint includes a spherical insert within its housing and is intended for weld-on mounting. It is not a bare fixed eye or a separate unmounted bearing.
Production material designation: S355 steel. Bearing contact: steel on steel. The bore is dimension A; G is overall height. Refer to the dimensional drawing for the inner-ring, housing and mounting dimensions. No separate insert steel grade, pressure rating, welded-assembly capacity or whole-cylinder load is specified.
This execution is lubricatable. Lubrication interval, grease type and maintenance procedure are not specified.
Available on request, subject to a minimum order batch.
Full specifications
Technical specifications
Product type
Weld-on spherical cylinder end
Mounting
Weld-on
Construction
Complete ball-joint end with spherical insert
Material documentation reference
Manufacturer production-material designation: S355 steel. This does not identify a separate bearing-insert steel grade.
Bearing bore A (mm)
50
Bearing contact
Steel on steel
Lubrication
Lubricatable
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBSN50L
Manufacturer production note
On request on a minimum batch, as marked by the current catalogue. No current stock or delivery claim.
