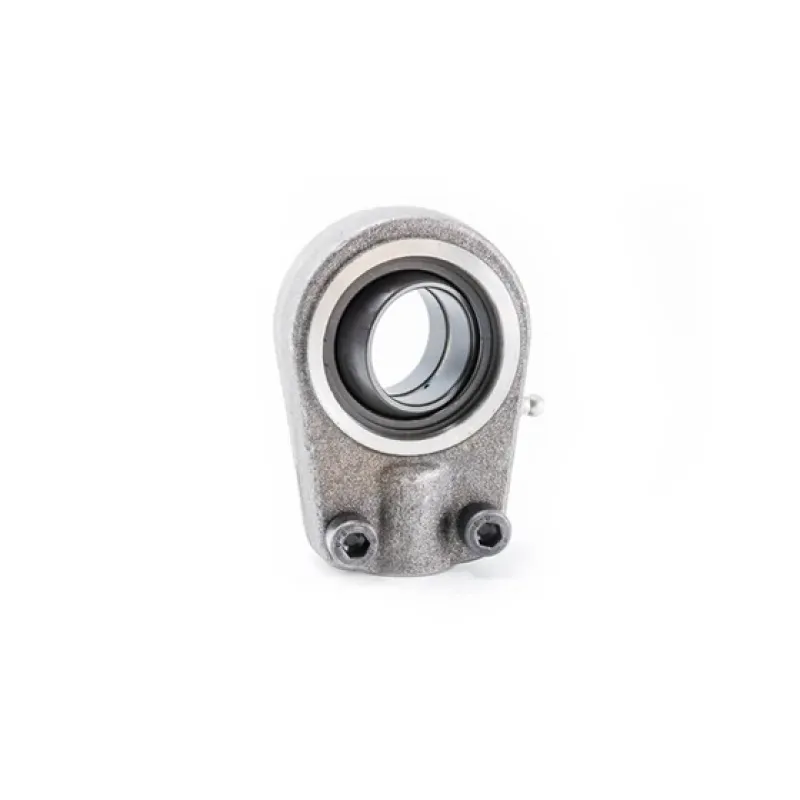

Naldoni e Biondi NBSN120U is a SN-U female-threaded spherical rod end with a 120 mm bearing bore, 490 mm overall height and M130 × 3 metric mounting thread. It has steel-on-steel bearing contact. Production material designation: Spheroidal cast iron. Confirm the bearing-insert grade. Lubricatable. Mass: 72.00 kg.
Confirm allowable load, articulation limits, thread handedness and mating-thread compatibility for the application.
Available on request, subject to a minimum order batch.
Full specifications
Technical specifications
Product type
Female-threaded spherical rod end
Mounting thread I
M130 × 3
Thread gender
Female
Mounting
Threaded
Material
Spheroidal cast iron
Catalogue material designation
Spheroidal cast iron. Confirm the bearing-insert grade.
Construction
Complete ball-joint end with spherical insert
Application limits
Confirm allowable load, articulation limits, thread handedness and mating-thread compatibility for the application.
Bearing bore A (mm)
120
Bearing contact
Steel on steel
Lubrication
Lubricatable
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBSN120U
Manufacturer production note
Available on request, subject to a minimum order batch.
