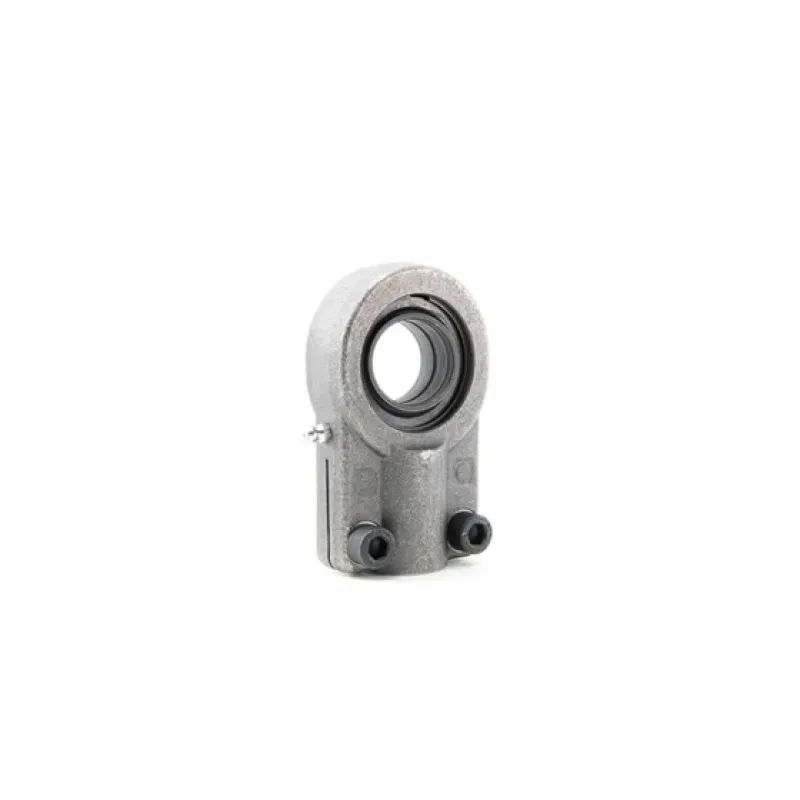

Naldoni e Biondi NBSN100CE is a SN-CE female-threaded spherical rod end with a 100 mm bearing bore, 322 mm overall height and M80 × 3 metric mounting thread. It has steel-on-steel bearing contact. Production material designation: C45 steel. Confirm the bearing-insert grade. Lubricatable. Mass: 25.00 kg.
Confirm allowable load, articulation limits, thread handedness and mating-thread compatibility for the application.
Available on request, subject to a minimum order batch.
Full specifications
Technical specifications
Product type
Female-threaded spherical rod end
Mounting thread I
M80 × 3
Thread gender
Female
Mounting
Threaded
Material
Steel
Catalogue material designation
C45 steel. Confirm the bearing-insert grade.
Construction
Complete ball-joint end with spherical insert
Application limits
Confirm allowable load, articulation limits, thread handedness and mating-thread compatibility for the application.
Bearing bore A (mm)
100
Bearing contact
Steel on steel
Lubrication
Lubricatable
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBSN100CE
Manufacturer production note
Available on request, subject to a minimum order batch.
