Naldoni e Biondi NBFSI0000020 AISI 316L weldable cylinder fork

Naldoni e Biondi NBFSI0000020 is an NBFSI U-shaped weldable cylinder fork for a hydraulic cylinder connection. Its two ears provide the pin-hole connection shown in the manufacturer drawing.

The catalogue specifies AISI 316L stainless steel, a 20.25 mm pin-hole bore and a 20 mm fork opening. The square base size H is 40 mm and the listed mass is 0.38 kg. Refer to the original dimensional drawing for the remaining dimensions; no pressure or assembly load rating is assigned.

The exact manufacturer row is marked as on request subject to a minimum batch. Supplied pins, fasteners and mating-part compatibility are not specified.

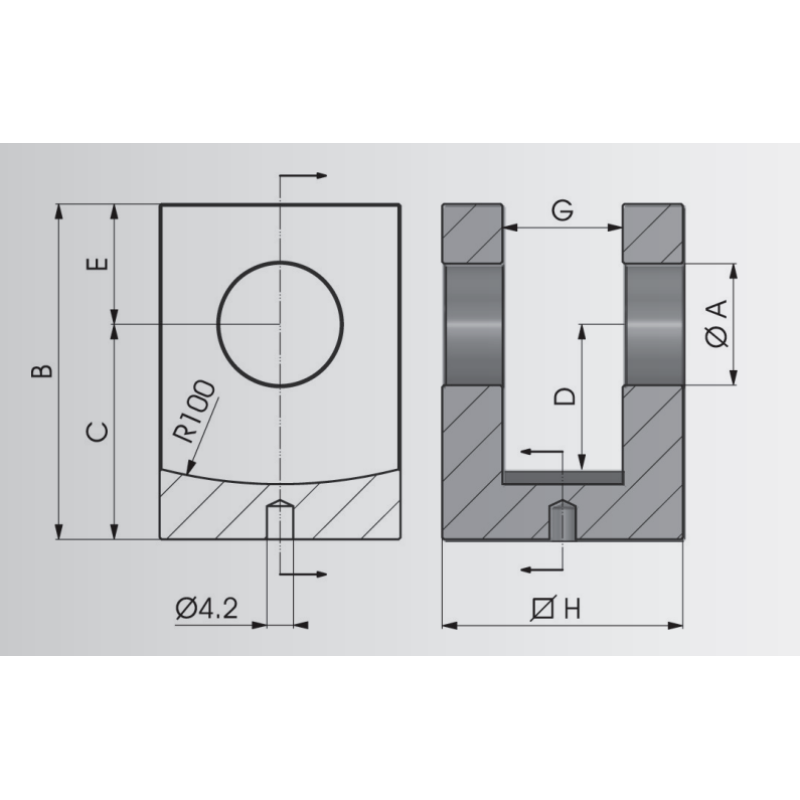

The image is the unchanged original NBFSI family drawing, not a product photograph. The local PDF contains the complete original manufacturer page, including the exact model row, material designation and minimum-batch note.
