Naldoni e Biondi NBFFILI161615 AISI 316L female-threaded cylinder clevis end

Naldoni e Biondi NBFFILI161615 is an NBFFILI internally threaded clevis end for a hydraulic cylinder rod connection. Its two-ear fork uses a M16 × 1.5 mounting thread.

The catalogue specifies AISI 316L stainless steel, a 16.2 mm pin-hole bore and a 16 mm fork opening. The square base size H is 35 mm and the listed mass is 0.30 kg. Refer to the original dimensional drawing for the remaining dimensions; no pressure or assembly load rating is assigned.

The exact manufacturer row is marked as on request subject to a minimum batch. Supplied pins, fasteners and mating-part compatibility are not specified.

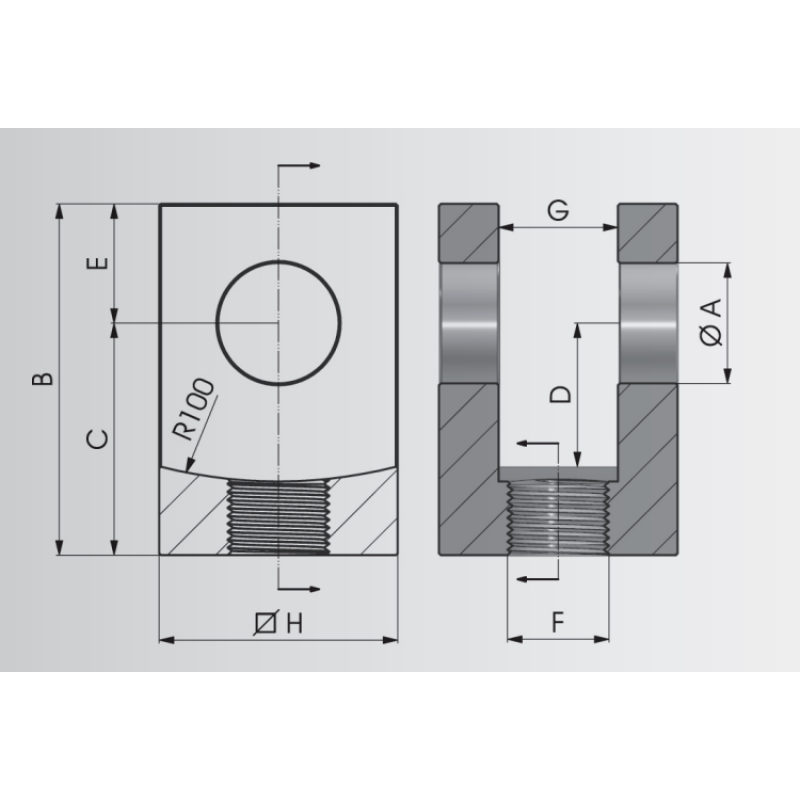

The image is the unchanged original NBFFILI family drawing, not a product photograph. The local PDF contains the complete original manufacturer page, including the exact model row, material designation and minimum-batch note.
