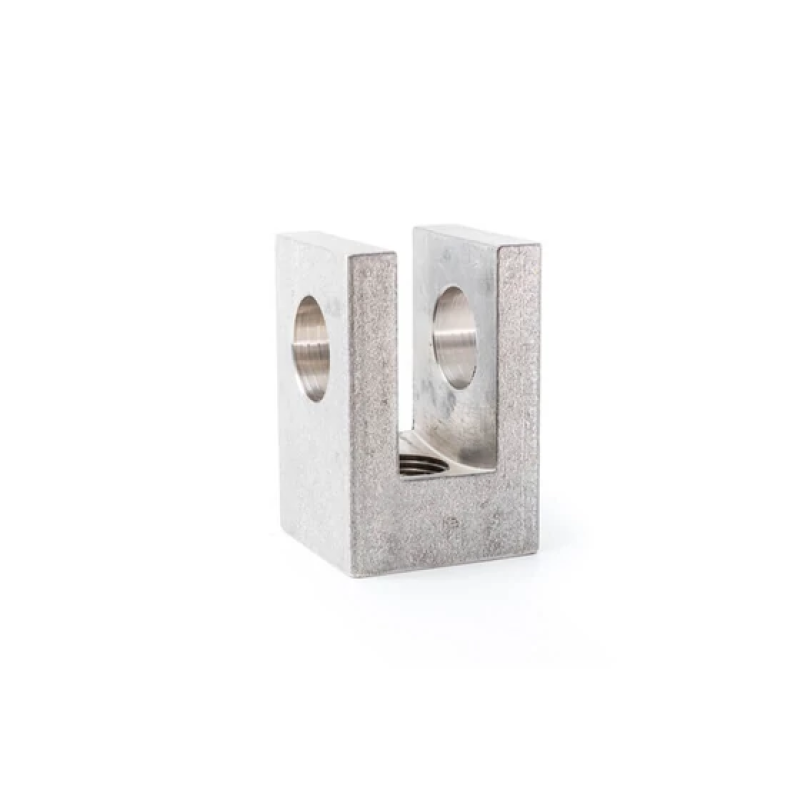

Naldoni e Biondi NBFFIL161615 is an NBFFIL threaded fork for a hydraulic cylinder rod connection. The construction has a two-ear clevis with an internal metric mounting thread, M16 × 1.5.
Dimension A is the pin-hole bore, 16.2 mm, and G is the fork opening, 16 mm. The square base dimension H is 35 mm. Other dimensions retain the dimensional drawing letters. Material designation: S235JR steel; no material certificate is established.
No pressure, assembly load, supplied pin, ISO conformity or mating-part compatibility is assigned.
Full specifications
Technical specifications
Product type
Female-threaded cylinder clevis end
Thread gender
Female
Mounting
Threaded
Material documentation reference
Manufacturer production-material designation: S235JR steel. No independent material certificate established.
Drawing reference
Mounting thread: F; fork opening: G. Other dimension letters retain the original manufacturer drawing.
