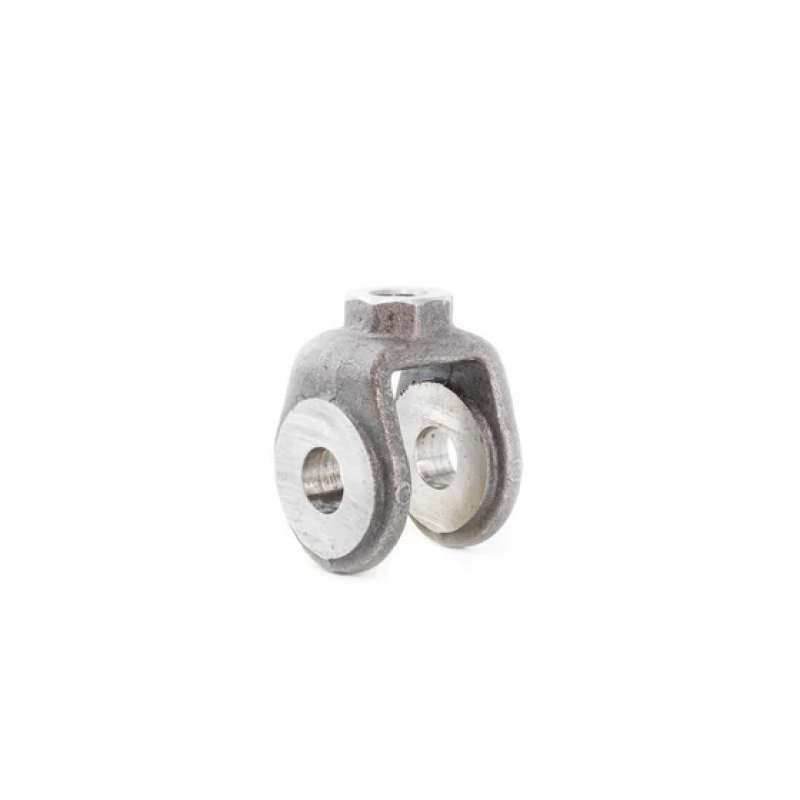

Naldoni e Biondi NBCF11333 is an NBCF hinge fork for a hydraulic cylinder rod connection. The construction includes a two-ear clevis with an internal mounting thread, M33 × 2.
Dimension A is the pin-hole bore, 36 mm, and B is the fork opening, 50 mm. Other dimensions retain the dimensional drawing letters. Material designation: S355 steel; no material certificate or additional material grade is established.
Available on request, subject to a minimum order batch. No cylinder pressure, assembly load, pin inclusion, ISO 15552 conformity or mating-part compatibility is assigned.
Full specifications
Technical specifications
Product type
Female-threaded cylinder clevis end
Thread gender
Female
Mounting
Threaded
Material documentation reference
Manufacturer production-material designation: S355 steel. No additional grade or independent material certificate is established.
Drawing reference
Mounting thread: manufacturer drawing I. Fork opening: manufacturer drawing B. Original NBCF sheet physical page 134, printed page 133.
Fork opening (mm)
50
Manufacturer
Naldoni e Biondi
Manufacturer part number
NBCF11333
Manufacturer production note
Available on request, subject to a minimum order batch. Batch quantity is not specified.
