Swinging ball-and-socket cylinder end

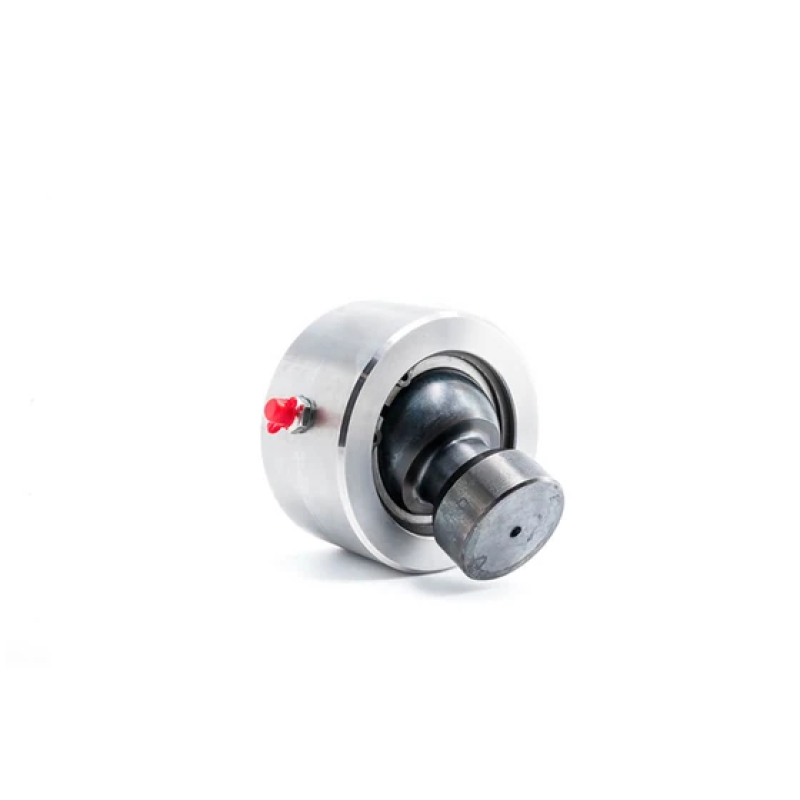

Naldoni e Biondi NBBAOS050000 hydraulic cylinder swinging ball-and-socket end

Model: NBBAOS050000 · Naldoni e Biondi
ConstructionComplete swinging-end joint assembly

Description

Naldoni e Biondi NBBAOS050000 is a hydraulic cylinder swinging ball-and-socket end in the NBBAOS family. This is the complete articulated end assembly including the ball and socket base, rather than a plain weld-on eye or a separate bearing insert. A denotes the spherical diameter, B the base outside diameter, C overall height and E the shank diameter. Dimension D retains its dimensional drawing label. Material designations: C45 / 080M46. Material equivalence is not specified. No pin-bore, load capacity or articulation angle is specified.

No whole-cylinder pressure or structural rating is specified.

Full specifications

Technical specifications
Product type Swinging ball-and-socket cylinder end
Construction Complete swinging-end joint assembly
Material documentation reference Italian manufacturer text: steel C45; English manufacturer text: steel 080M46. Both original designations are retained; no independent material equivalence certification.
Manufacturer Naldoni e Biondi
Manufacturer part number NBBAOS050000
Product family NBBAOS
Base outside diameter B (mm) 85
Catalogue dimension D (mm) 20
Mass (kg) 2.2
Overall height C (mm) 82
Shank diameter E (mm) 40
Spherical diameter A (mm) 50
