Naldoni e Biondi NBAFSI000030 is a fixed weld-on cylinder-eye terminal with a plain 30.2 mm bore. The manufacturer identifies AISI 316L stainless steel as the production material. This fixed eye does not include a spherical bearing insert.
The catalogue lists dimensions B 60 mm, C 35 mm, D 45 mm and E 75 mm, with a mass of 0.98 kg. Drawing letters are retained for comparison with the original reference.

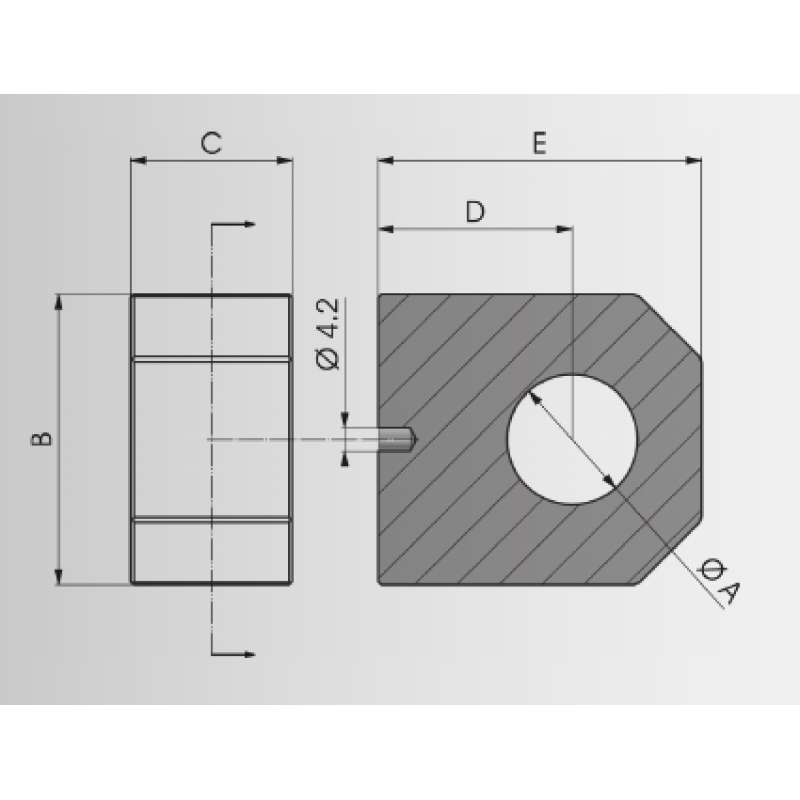

The manufacturer marks this article as available on request subject to a minimum batch; the batch quantity is not specified. The illustration is the original manufacturer family drawing. The local PDF includes the exact model row and dimensional reference.
Full specifications
Technical specifications
Product type
Fixed weld-on cylinder eye
Mounting
Weld-on
Material
Stainless steel AISI 316L
Construction
Fixed terminal with plain bore; no spherical insert
Availability documentation reference
Manufacturer marks this article as on request on a minimum batch. No factory batch quantity is specified.
