Hydraulic motor

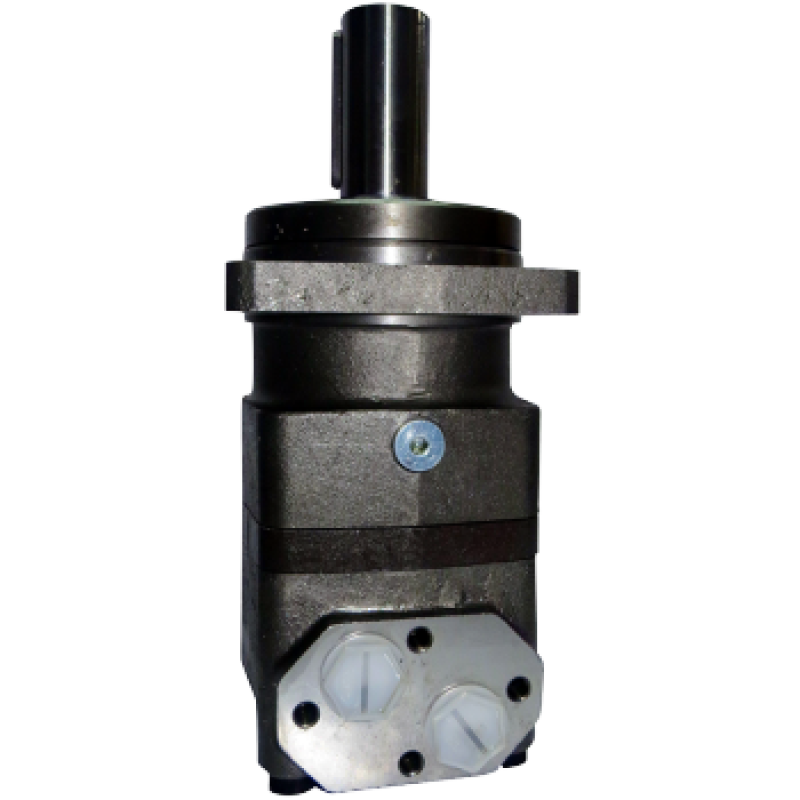

MOMV type motor 50mm Ø MOMV400

Model: MOMV400
Displacement (cm³/rev)400
Port 1 thread1" BSP

Description

MOMV type motor 50mm Ø MOMV400. The hydraulic motor converts fluid power into rotary motion. Check its drive and connection arrangement.

This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.

Technical documentation

MOMV type motor 50mm Ø. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Hydraulic motor
Displacement (cm³/rev) 400
Port 1 thread 1" BSP
Equipment family Hydraulic motors
Original specifications - unverified
Max.Peak pressure 280
Displacement, cm3/rev 400
Flow max, l/min 200
Max.torquecont. 110,8
R1 1'' BSP
Max.powercont. 40
Max.press.cont. 200
R.P.M.cont. 500
B 26
L1 221
L2 170
