Hydraulic motor

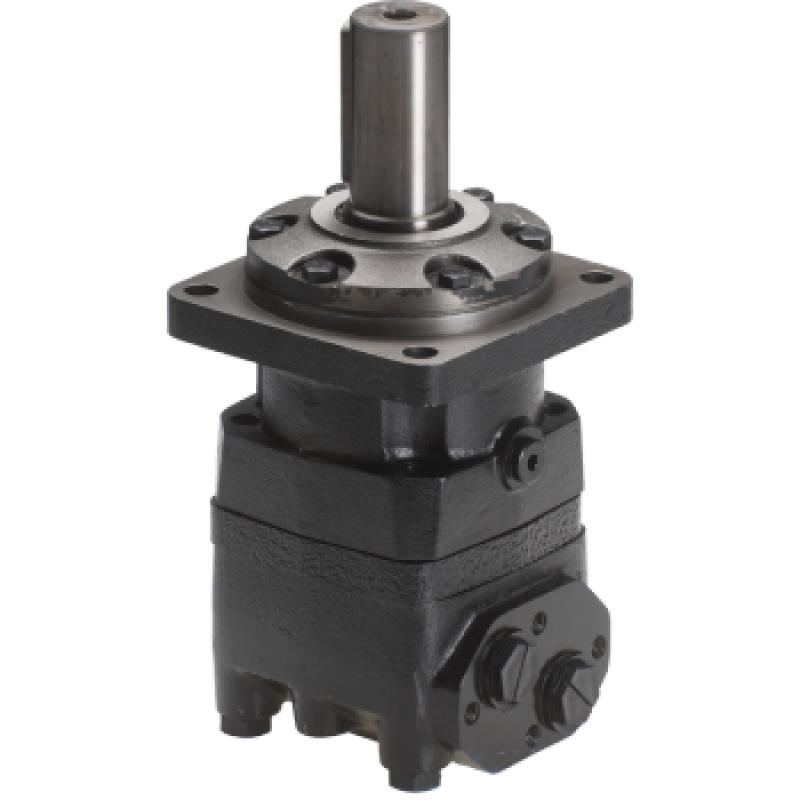

MOMT type motor 40mm Ø MOMT200

Model: MOMT200
Max.Peak pressure280
Displacement (cm³/rev)200
Max.powercont.34
Port 1 thread3/4'' BSP
Flow max, l/min125
Max.torque peak83
Full specifications ↓

Description

MOMT type motor 40mm Ø MOMT200. The hydraulic motor converts fluid power into rotary motion. Check its drive and connection arrangement.

This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.

Local technical documentation: verification pending.

Full specifications

Technical specifications
Component type Hydraulic motor
Displacement (cm³/rev) 200
Port 1 thread 3/4'' BSP
Documentation status Exact primary-card model confirmed
Equipment family Hydraulic motors
Original specifications - unverified
Max.Peak pressure 280
Displacement, cm3/rev 200
Flow max, l/min 125
Max.torque peak 83
R1 3/4'' BSP
Max.powercont. 34
Max.press.cont. 200
Max.press.interm 240
Max.torqucont. 58
R.P.M.cont. 615
R.P.M.int. 750
A 155
B 16,5
L 205,
