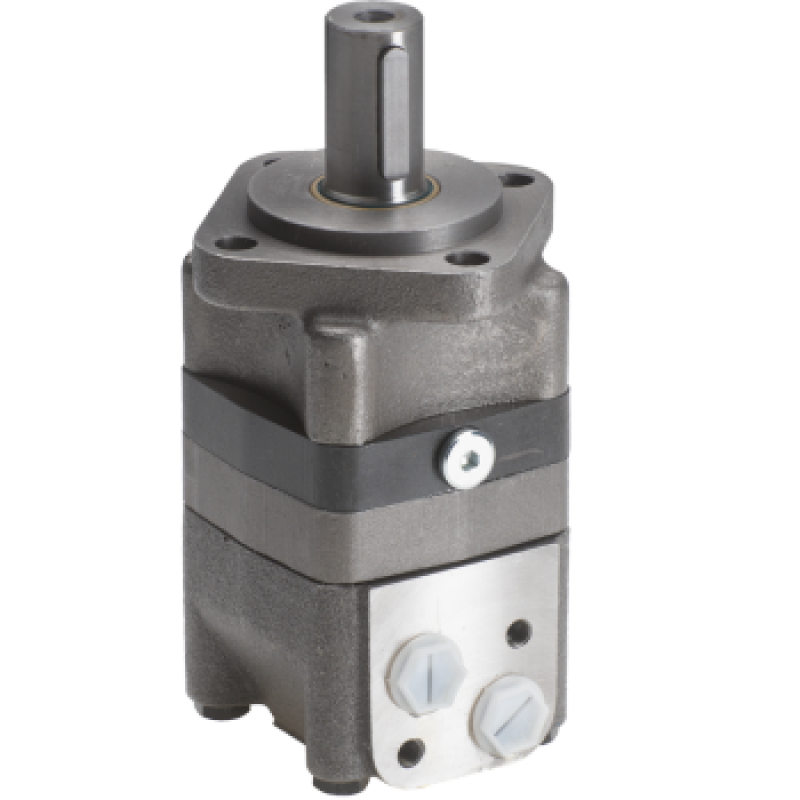

Hydraulic motor
MOMS type motor 32mm Ø MOMS80
Model: MOMS80
Max.Peak pressure225
Displacement (cm³/rev)80.5
Max.powercont.16,4
Port 1 thread1/2" BSP
Flow max, l/min65
Max.torque peak26
MOMS type motor 32mm Ø MOMS80. The hydraulic motor converts fluid power into rotary motion. Check its drive and connection arrangement.
This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.
Local technical documentation: verification pending.
| Technical specifications | |
| Component type | Hydraulic motor |
| Displacement (cm³/rev) | 80.5 |
| Port 1 thread | 1/2" BSP |
| Documentation status | Exact primary-card model confirmed |
| Equipment family | Hydraulic motors |
| Original specifications - unverified | |
| Max.Peak pressure | 225 |
| Displacement, cm3/rev | 80 |
| Flow max, l/min | 65 |
| Max.torque peak | 26 |
| R1 | 1/2'' BSP |
| Max.powercont. | 16,4 |
| Max.press.cont. | 175 |
| Max.press.interm | 210 |
| Max.torqucont. | 19,8 |
| R.P.M.cont. | 805 |
| R.P.M.int. | 1 |
| A | 124 |
| B | 11 |
| L | 167 |
