Hydraulic motor

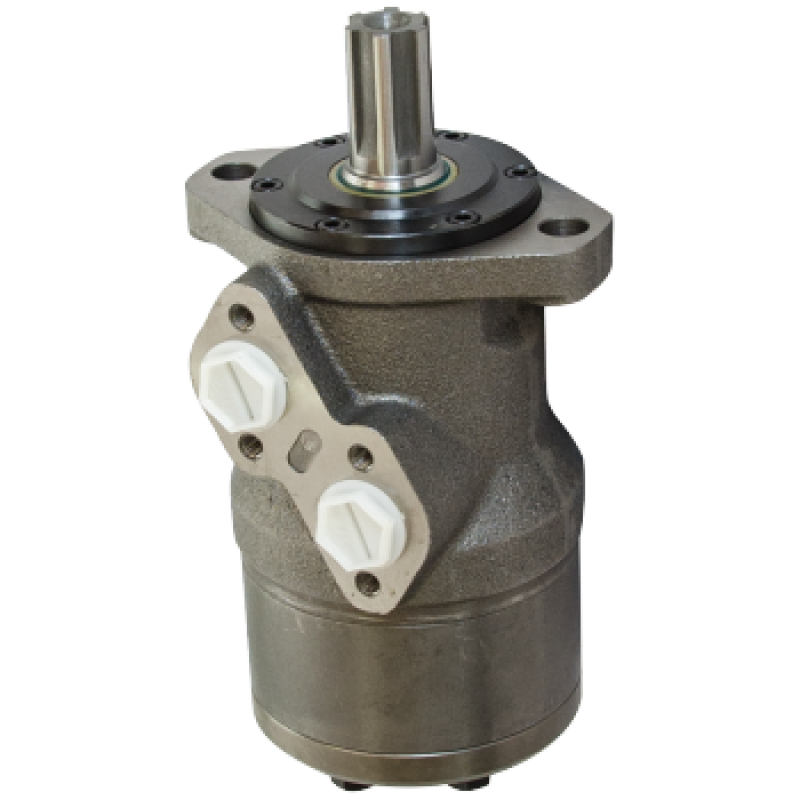

MOMR type motor with splined shaft MOMR50EST
Model: MOMR50EST
Displacement (cm³/rev)50
Port 1 thread1/2" BSP
MOMR type motor with splined shaft MOMR50EST. The hydraulic motor converts fluid power into rotary motion. Check its drive and connection arrangement.
MOMR type motor with splined shaft. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Hydraulic motor |
| Displacement (cm³/rev) | 50 |
| Port 1 thread | 1/2" BSP |
| Equipment family | Hydraulic motors |
| Original specifications - unverified | |
| Max.Peak pressure | 210 |
| Displacement, cm3/rev | 50 |
| Flow max, l/min | 40 |
| Max. flow cont. | 40 |
| Max.torque peak | 16,8 |
| Max.torquecont. | 10 |
| R1 | 1/2'' BSP |
| Max.powercont. | 6,9 |
| Max.press.cont. | 140 |
| R.P.M.cont. | 770 |
| R.P.M.int. | 970 |
| B | 9 |
| L | 139 |
