Hydraulic motor

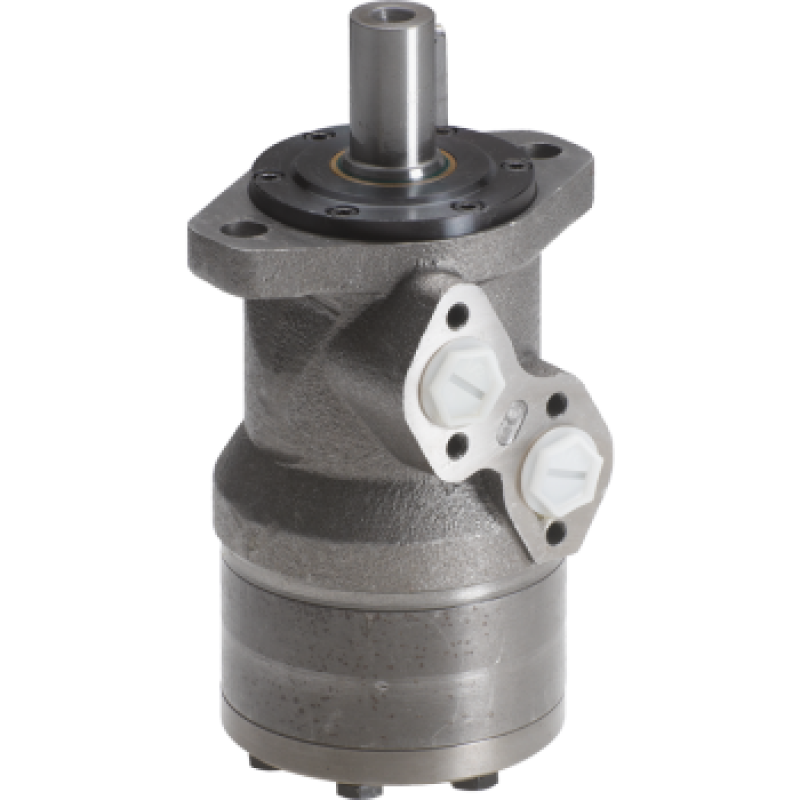

MOMR type motor with 32mm shaft MOMR125-32

Model: MOMR125-32
Max.Peak pressure200
Displacement (cm³/rev)125
Max.powercont.12,4
Port 1 thread1/2" BSP
Flow max, l/min60
Max.torque peak33
Full specifications ↓

Description

MOMR type motor with 32mm shaft MOMR125-32. The hydraulic motor converts fluid power into rotary motion. Check its drive and connection arrangement.

This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.

Local technical documentation: verification pending.

Full specifications

Technical specifications
Component type Hydraulic motor
Displacement (cm³/rev) 125
Port 1 thread 1/2" BSP
Documentation status Exact primary-card model confirmed
Equipment family Hydraulic motors
Original specifications - unverified
Max.Peak pressure 200
Displacement, cm3/rev 125
Flow max, l/min 60
Max.torque peak 33
R1 1/2'' BSP
Max.powercont. 12,4
Max.press.cont. 140
Max.press.interm 180
Max.torqucont. 23
R.P.M.cont. 470
R.P.M.int. 600
B 22
L 152
