Hydraulic motor

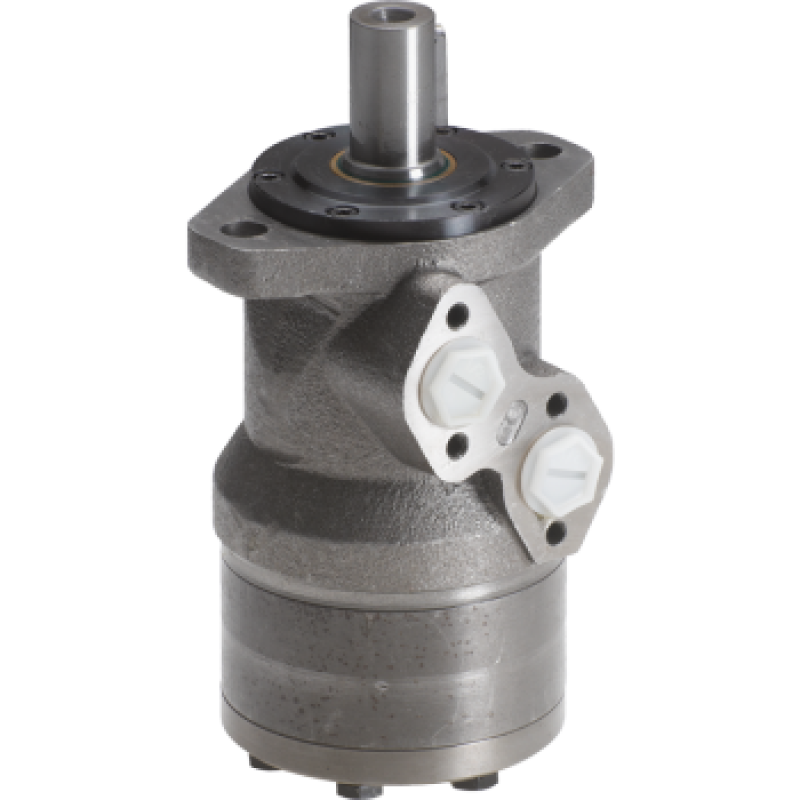

MOMR type motor 25 mm Ø MOMR100
Model: MOMR100
Displacement (cm³/rev)100
Port 1 thread1/2" BSP
MOMR type motor 25 mm Ø MOMR100. The hydraulic motor converts fluid power into rotary motion. Check its drive and connection arrangement.
MOMR type motor 25 mm Ø. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Hydraulic motor |
| Displacement (cm³/rev) | 100 |
| Port 1 thread | 1/2" BSP |
| Equipment family | Hydraulic motors |
| Original specifications - unverified | |
| Max.Peak pressure | 200 |
| Displacement, cm3/rev | 100 |
| Flow max, l/min | 75 |
| Max. flow cont. | 60 |
| Max.torque peak | 270 |
| R1 | 1/2'' BSP |
| Max.powercont. | 10 |
| Max.press.cont. | 140 |
| Max.press.interm | 175 |
| Max.torqucont. | 194 |
| R.P.M.cont. | 600 |
| R.P.M.int. | 750 |
| B | 17,5 |
| L | 148 |
