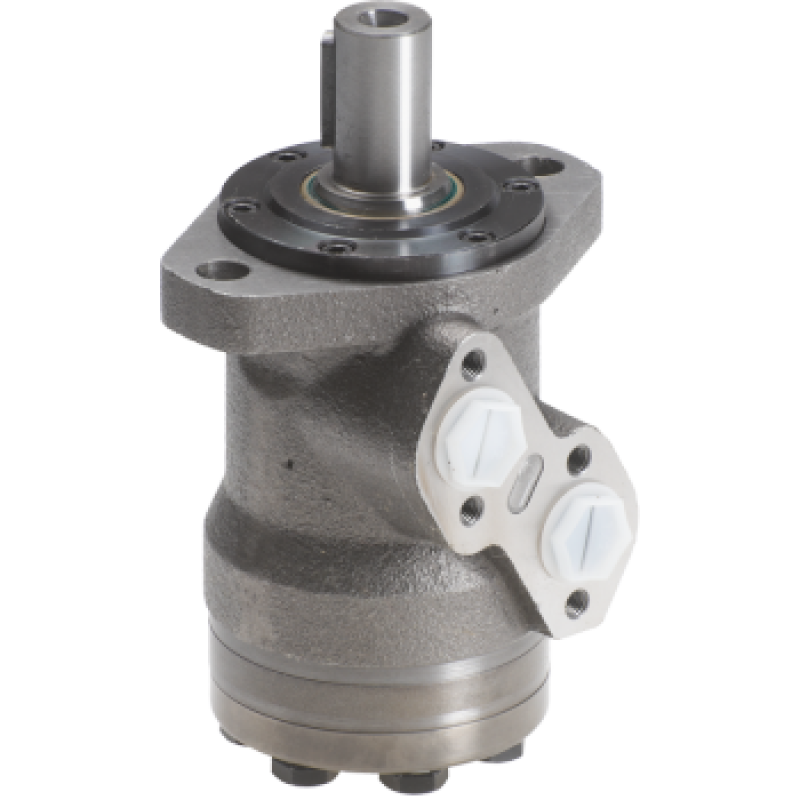

Hydraulic motor

MOMP type motor 25 mm Ø MOMP200

Model: MOMP200
Max.Peak pressure210
Displacement (cm³/rev)200
Max.powercont.9,6
Port 1 thread1/2" BSP
Flow max, l/min60
Max.torque peak54,5
Full specifications ↓

Description

MOMP type motor 25 mm Ø MOMP200. The hydraulic motor converts fluid power into rotary motion. Check its drive and connection arrangement.

This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.

Local technical documentation: verification pending.

Full specifications

Technical specifications
Component type Hydraulic motor
Displacement (cm³/rev) 200
Port 1 thread 1/2" BSP
Documentation status Exact primary-card model confirmed
Equipment family Hydraulic motors
Original specifications - unverified
Max.Peak pressure 210
Displacement, cm3/rev 200
Flow max, l/min 60
Max. flow cont. 60
Max.torque peak 54,5
R1 1/2'' BSP
Max.powercont. 9,6
Max.press.cont. 135
Max.press.interm 160
Max.torqucont. 35,9
R.P.M.cont. 302
R.P.M.int. 380
B 26
L 160
