Pneumatic cylinder

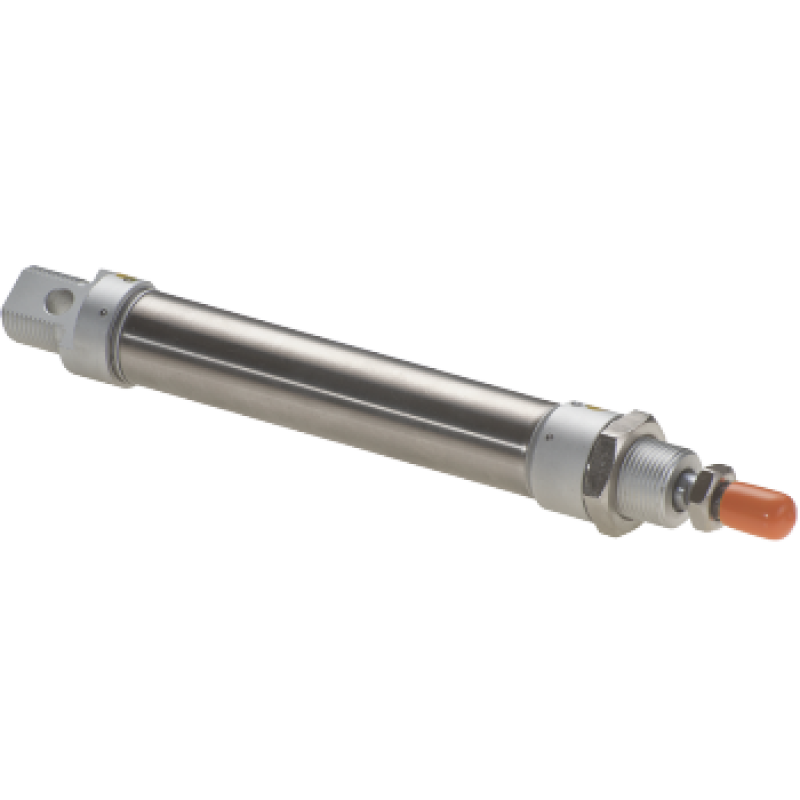

Micro-cylinders D.A. ISO 6432 Ø20 MCDM20125

Model: MCDM20125
Stroke (mm)125

Description

Micro-cylinders D.A. ISO 6432 Ø20 MCDM20125. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.

Model specifications: Stroke (mm): 125.

Technical documentation

Micro-cylinders D.A. ISO 6432 Ø20. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Pneumatic cylinder
Stroke (mm) 125
Equipment family Micro-cylinders D.A. ISO 6432
Original specifications - unverified
Stroke, mm 125
A 20
B M8
C 18
D 12
E 68
F 20
G 133
I M22*1,5
J 28,6
ØH 8
