Pneumatic cylinder

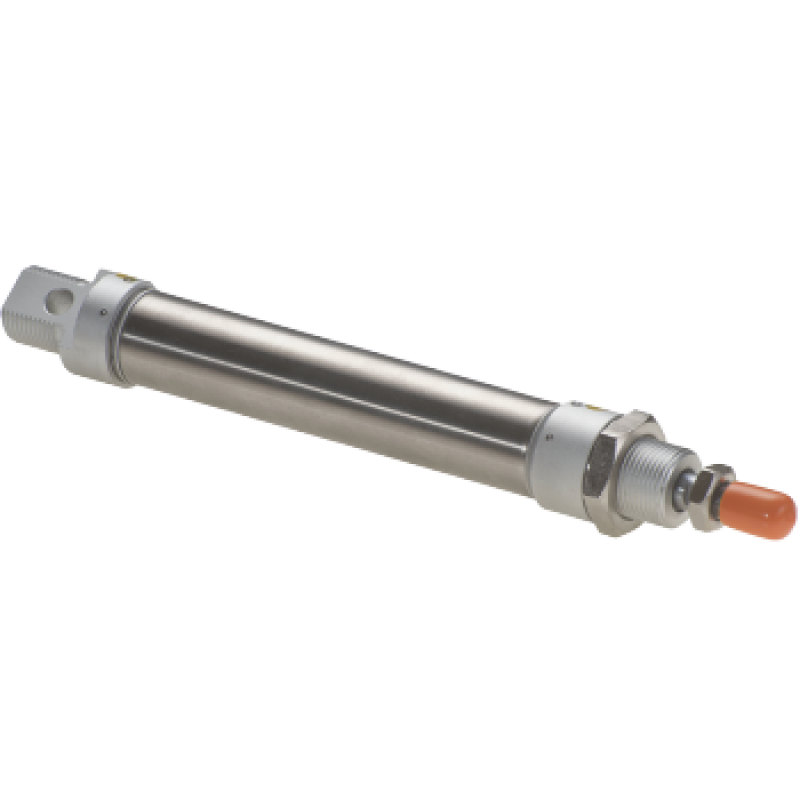

Micro-cylinders D.A. ISO 6432 Ø16 MCDM16010
Model: MCDM16010
Stroke (mm)10
Micro-cylinders D.A. ISO 6432 Ø16 MCDM16010. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.
Model specifications: Stroke (mm): 10.
Micro-cylinders D.A. ISO 6432 Ø16. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Pneumatic cylinder |
| Stroke (mm) | 10 |
| Equipment family | Micro-cylinders D.A. ISO 6432 |
| Original specifications - unverified | |
| Stroke, mm | 10 |
| A | 17 |
| B | M6 |
| C | 14,5 |
| D | 10 |
| E | 56 |
| F | 17 |
| G | 112 |
| I | M16*1,5 |
| J | 21 |
| ØH | 6 |
