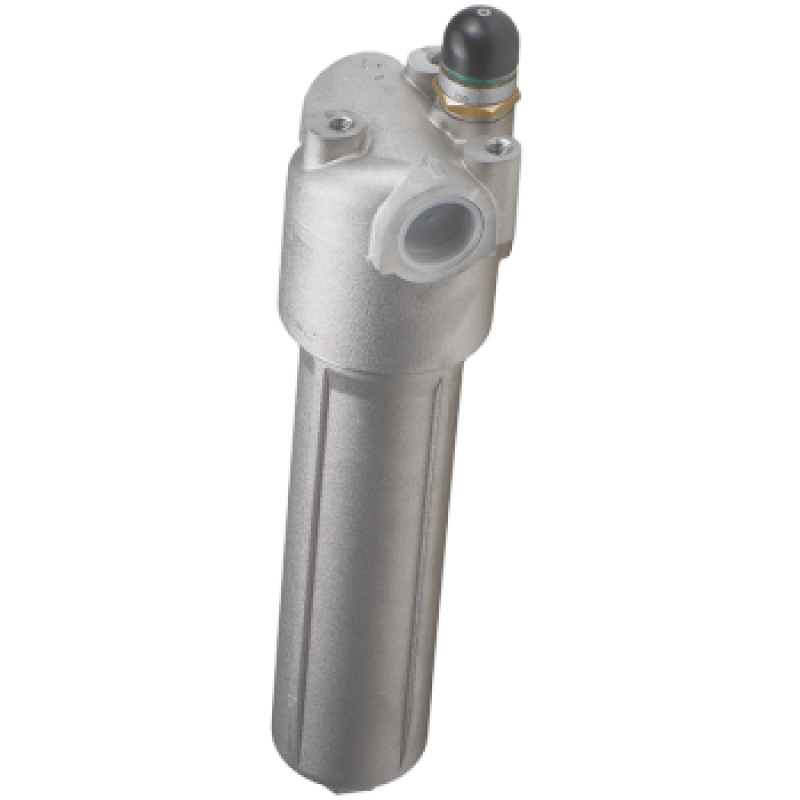

Medium-high pressure in line filter (Complete) 80 bar / 100 bar 100XD160G10AB6DSZ3
Model: 100XD160G10AB6DSZ3
Medium-high pressure in line filter (Complete) 80 bar / 100 bar 100XD160G10AB6DSZ3. This filtration component supports fluid cleanliness in the stated installation. Check the exact element and housing arrangement.
Medium-high pressure in line filter (Complete) 80 bar / 100 bar. Series reference only: this document does not list the exact imported model. It must not be used to confirm model-specific ratings or dimensions.
| Technical specifications | |
| Component type | Filter |
| Equipment family | Filters |
| Original specifications - unverified | |
| Max. pressure, bar | 80 |
| Flow max, l/min | 250 |
| R1 | 1''1/4 BS |
| Filtration degree | 10 μm |
| VISUALINDICATOR | 70 psi / 4.8 Bar |
| A | 40 |
| B | 60, |
| C | 110 |
| D | 129 |
| L | 289 |
| L1 | 140 |
