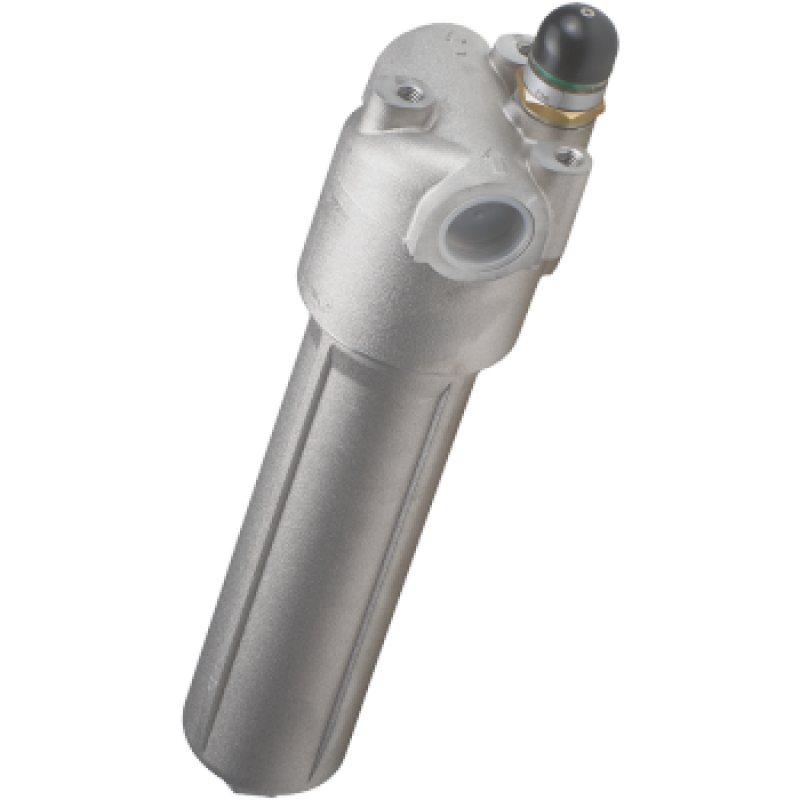

Medium-high pressure in line filter (Complete) 40 bar / 70 bar F040DMD0015E10BBB6DSZ30
Model: F040DMD0015E10BBB6DSZ30
Maximum pressure (bar)40
Port 1 thread1"1/4 BSP
Medium-high pressure in line filter (Complete) 40 bar / 70 bar F040DMD0015E10BBB6DSZ30. This filtration component supports fluid cleanliness in the stated installation. Check the exact element and housing arrangement.
Model specifications: Maximum pressure (bar): 40.
Medium-high pressure in line filter (Complete) 40 bar / 70 bar. The exact model is confirmed by the primary product record. This PDF covers the product family; model-specific values are not independently confirmed by this document.
| Technical specifications | |
| Component type | Filter |
| Maximum pressure (bar) | 40 |
| Port 1 thread | 1"1/4 BSP |
| Equipment family | Filters |
| Original specifications - unverified | |
| Max. pressure, bar | 40 |
| Flow max, l/min | 250 |
| R1 | 1''1/4 BS |
| Filtration degree | 10 μm |
| VISUALINDICATOR | 28 psi |
| A | 24 |
| B | 26 |
| C | 109 |
| D | 124 |
| L | 230 |
| L1 | 150 |
