Pneumatic cylinder

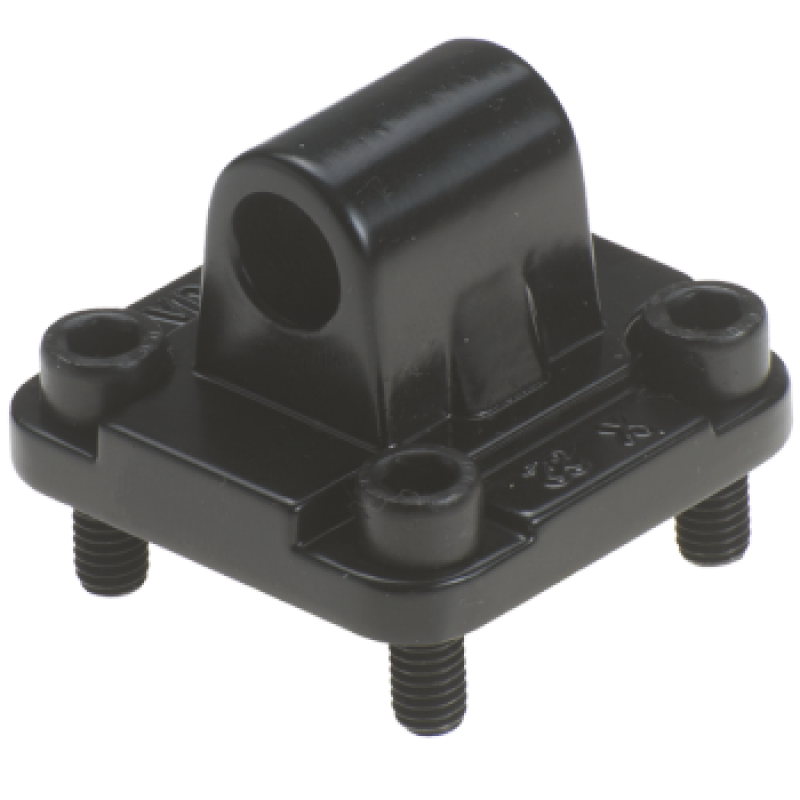

Male pivot in steel ISO 15552 CMCN032

Model: CMCN032

Description

Male pivot in steel ISO 15552 CMCN032. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.

Technical documentation

Male pivot in steel ISO 15552. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Pneumatic cylinder
Equipment family Pneumatic accessories ISO 15552
Original specifications - unverified
A 47
B 32,5
C 25,8
D 22
E 13
F 9
ØG 10
