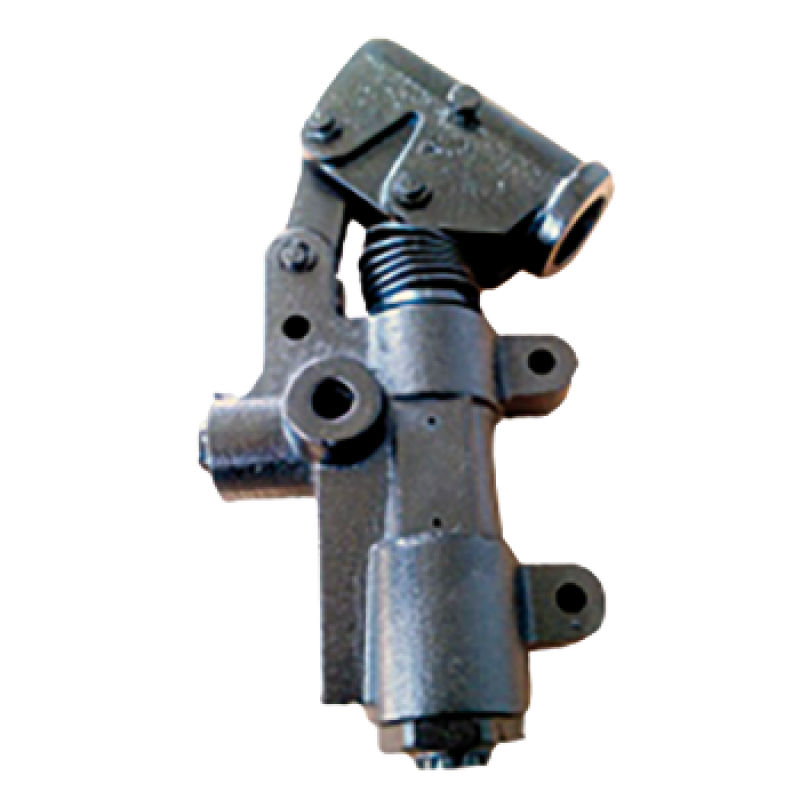

Hydraulic hand pump Single Act., with lever for tank aside BMT20
Click image to enlarge

Hydraulic hand pump Single Act., with lever for tank aside BMT20
Model: BMT20 · Trale
  • Manufacturer:
    Trale
  • Model:
    BMT20
Displacement per stroke (cm³/stroke)20
Working pressure (bar)250
Port thread1/2" BSP

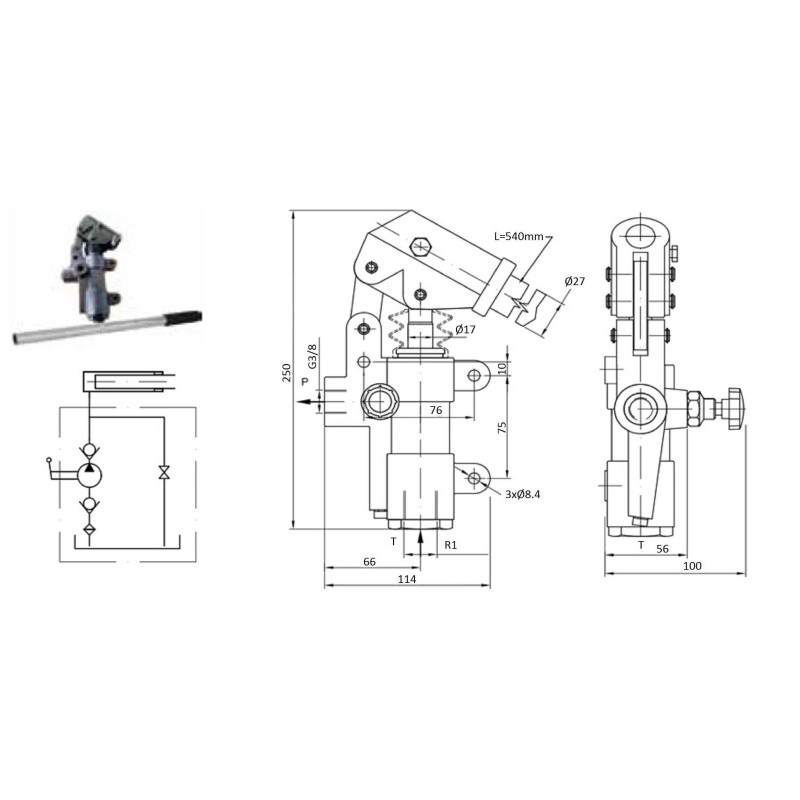

Full specifications ↓ Technical catalog · PDF

Description

Technical overview

BMT20 is a manually operated hydraulic pump. The specifications below are matched to the exact model in the linked official technical documentation.

Source notes

  • Output is expressed as displacement per stroke. The official catalogue and current product pages differ on lever inclusion; the exact supplied configuration requires confirmation.
  • Brand: TrAle. Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Working pressure (bar) 250
Displacement per stroke (cm³/stroke) 20
Port thread 1/2" BSP
Pump action single acting
Brand TrAle
