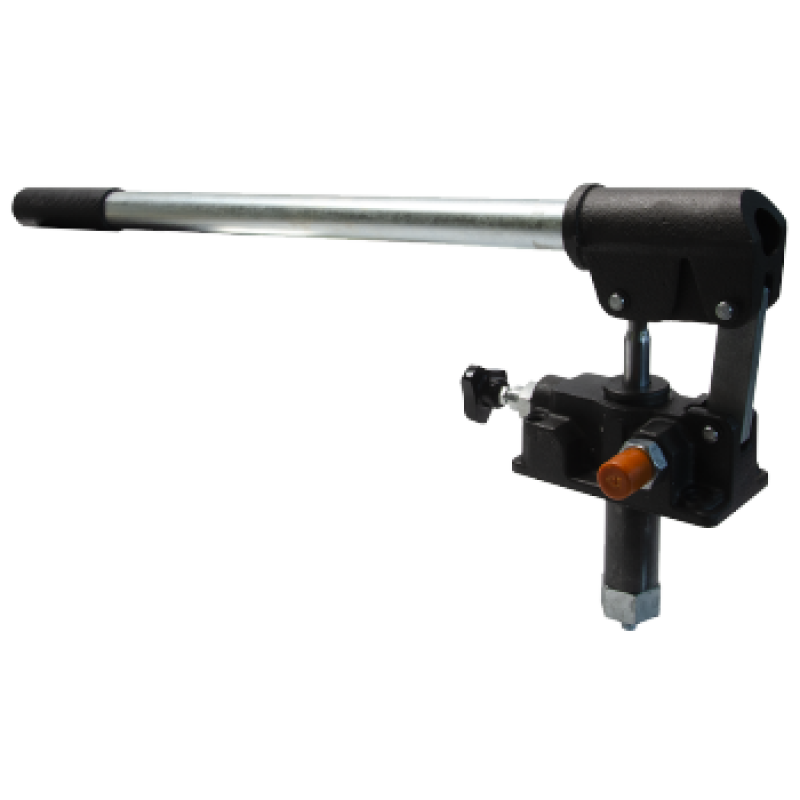

Hydraulic hand pump Single Act., with lever BMTSE45
Click image to enlarge

Hydraulic hand pump Single Act., with lever BMTSE45
Model: BMTSE45 · Trale
  • Manufacturer:
    Trale
  • Model:
    BMTSE45
Displacement per stroke (cm³/stroke)45
Working pressure (bar)160
Port thread3/8" BSP
Full specifications ↓

Description

Technical overview

BMTSE45 is a manually operated hydraulic pump. The specifications below are matched to the exact model in the linked official technical documentation.

Technical documentation

Official technical document — BMTSE45

Source notes

  • Output is expressed as displacement per stroke. The official catalogue and current product pages differ on lever inclusion; the exact supplied configuration requires confirmation.
  • Brand: TrAle. Technical documentation publisher: DICSA.

Full specifications

Technical specifications
Working pressure (bar) 160
Displacement per stroke (cm³/stroke) 45
Port thread 3/8" BSP
Pump action single acting
Brand TrAle

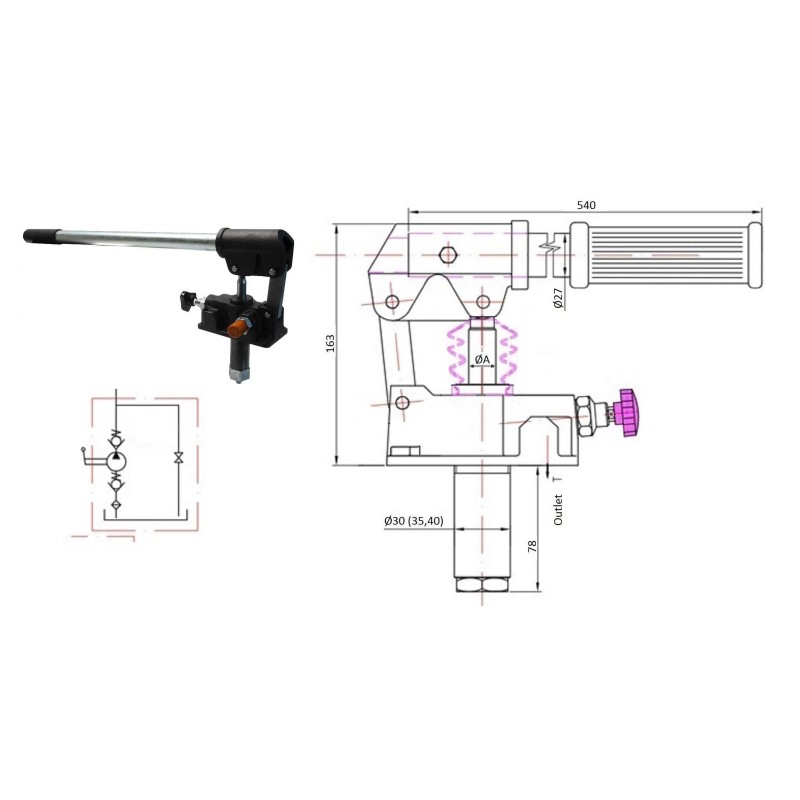

Legacy dimensions — revision unverified
ØA 20
