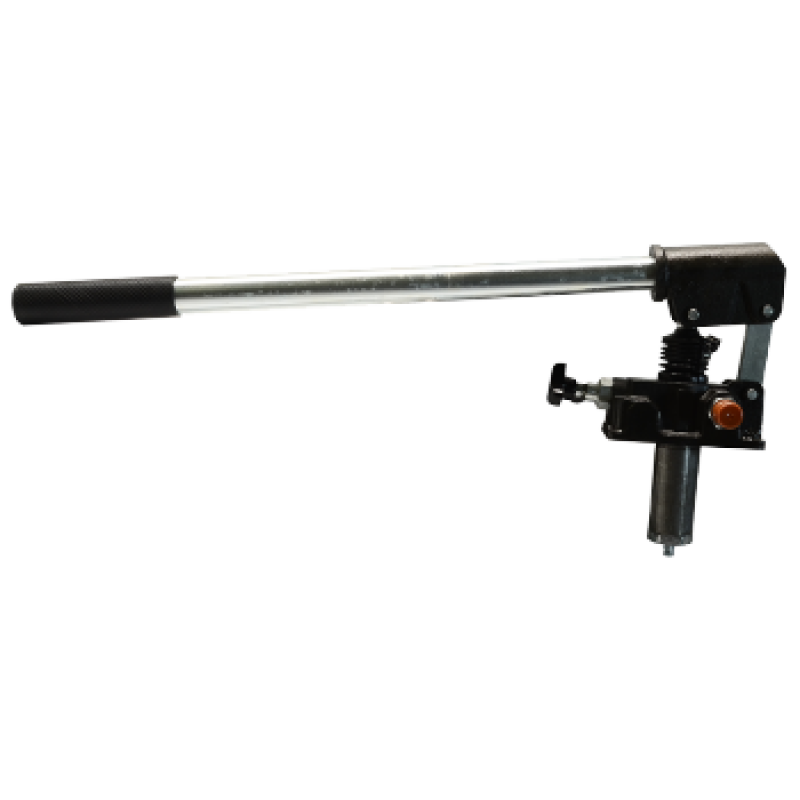

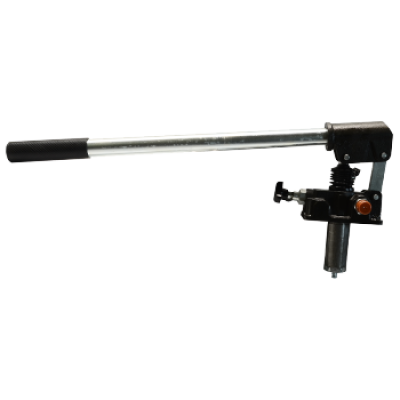

Hydraulic hand pump Single Act., with lever and bellows BMTSE45F
Click image to enlarge

Hydraulic hand pump Single Act., with lever and bellows BMTSE45F
Model: BMTSE45F · Trale
  • Manufacturer:
    Trale
  • Model:
    BMTSE45F
Displacement per stroke (cm³/stroke)45
Working pressure (bar)160
Port thread3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

BMTSE45F is a manually operated hydraulic pump. The specifications below are matched to the exact model in the linked official technical documentation.

Source notes

  • Output is expressed as displacement per stroke. The official catalogue and current product pages differ on lever inclusion; the exact supplied configuration requires confirmation.
  • Brand: TrAle. Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Working pressure (bar) 160
Displacement per stroke (cm³/stroke) 45
Port thread 3/8" BSP
Pump action single acting
Brand TrAle

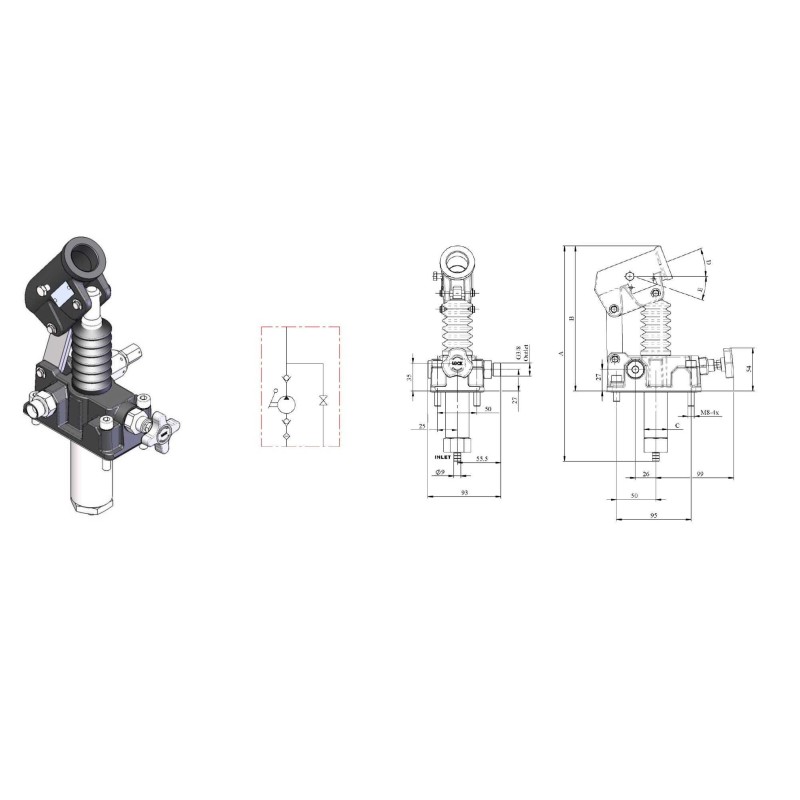

Legacy dimensions — revision unverified
E 25
A 307
B 200
D 53
C 40
