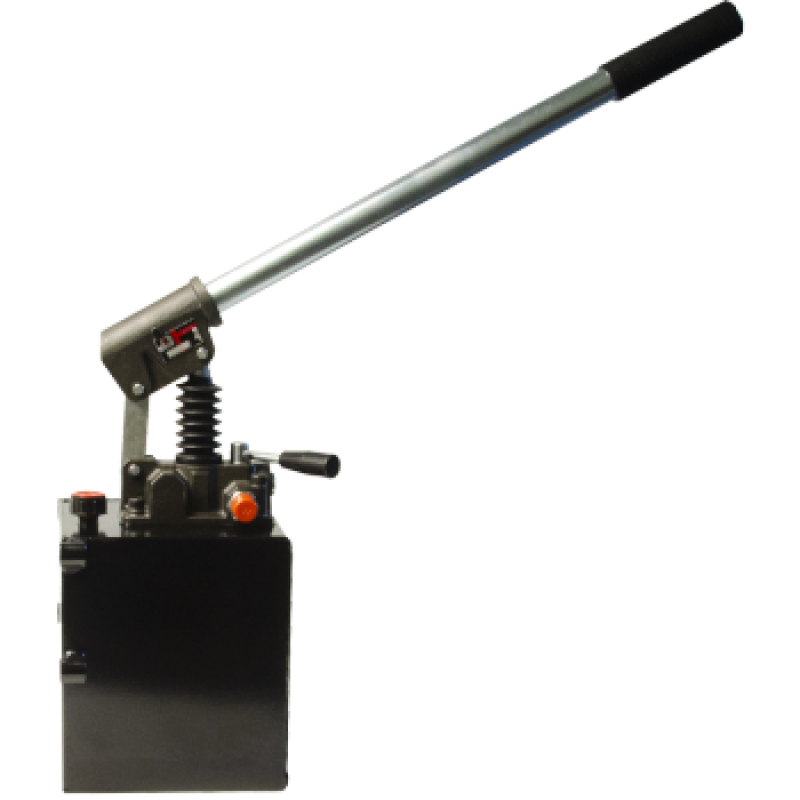

Hydraulic hand pump Double Act., with lever, bellows and tank BMTDE12F05
Click image to enlarge

Hydraulic hand pump Double Act., with lever, bellows and tank BMTDE12F05
Model: BMTDE12F05 · Trale
  • Manufacturer:
    Trale
  • Model:
    BMTDE12F05
Displacement per stroke (cm³/stroke)12
Working pressure (bar)320
Port thread3/8" BSP
Tank capacity (L)5
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

BMTDE12F05 is a manually operated hydraulic pump. The specifications below are matched to the exact model in the linked official technical documentation.

Source notes

  • Output is expressed as displacement per stroke. The official catalogue and current product pages differ on lever inclusion; the exact supplied configuration requires confirmation.
  • Brand: TrAle. Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Working pressure (bar) 320
Displacement per stroke (cm³/stroke) 12
Port thread 3/8" BSP
Tank capacity (L) 5
Pump action double acting
Brand TrAle
