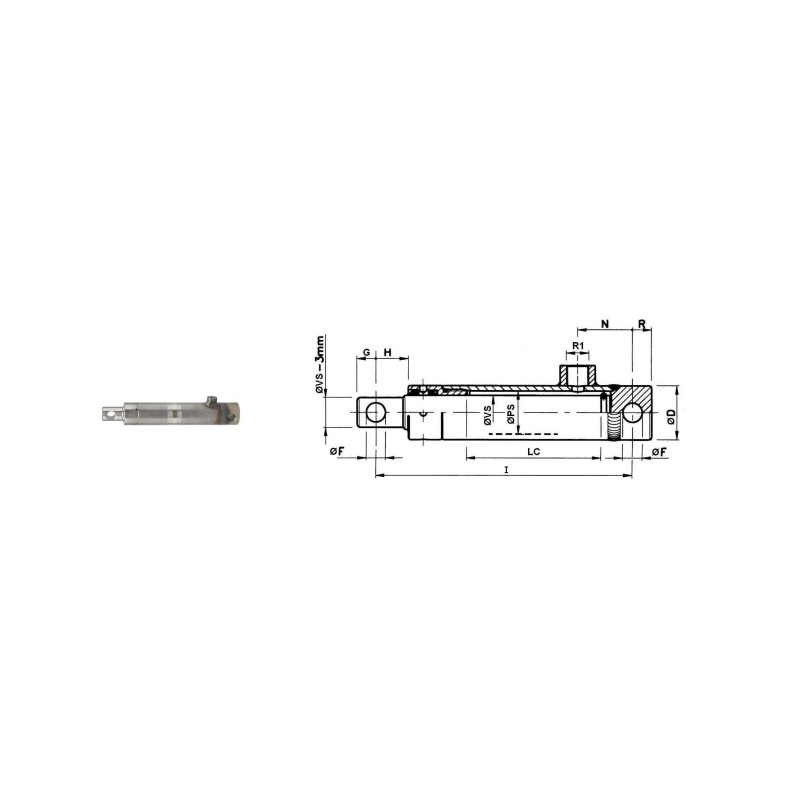

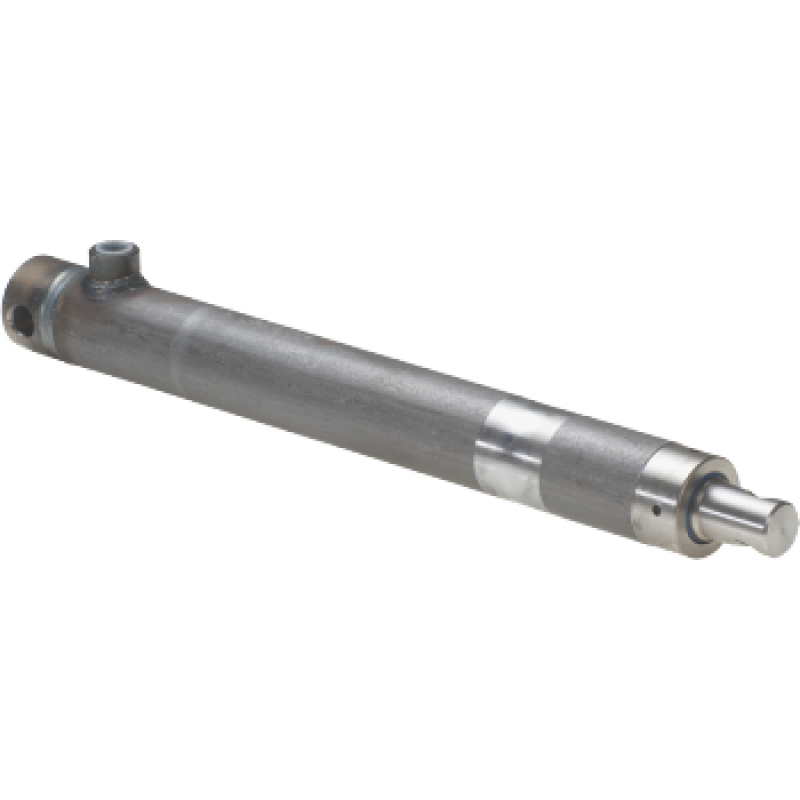

The SE30550 is a single-acting hydraulic cylinder with a 30 mm piston rod, 40 mm bore and 550 mm stroke. This series is supplied without guides. Dimensional details and connection specifications are listed in the linked DICSA technical data sheet.
Theoretical extension force at 100 bar: 7.069 kN, calculated from plunger area without friction or back pressure. Tube bore diameter is not the effective plunger diameter.
Brand: TrAle. Technical documentation publisher: DICSA. Official technical data sheet (PDF), page 1. The linked sheet may describe a later revision; check drawing dimensions and connections against the actual cylinder.
