HYDAC SBO200-1E1/663U-200AK diaphragm accumulator, 1 L

The HYDAC SBO200-1E1/663U-200AK is a rechargeable welded diaphragm accumulator, factory article 3041941. It stores hydraulic energy by separating the gas chamber from the fluid with a flexible diaphragm and can support pressure holding, pulsation damping and short-duration energy supply.

This article has a nominal accumulator volume of 1 L and a factory-card maximum allowable working pressure of 200 bar. Its diaphragm is ECO (Hydrin); the shell and fluid port are Low temperature carbon steel (≤ -20 ºF). Nominal volume is not the usable oil delivery volume, which depends on gas precharge and operating pressures.

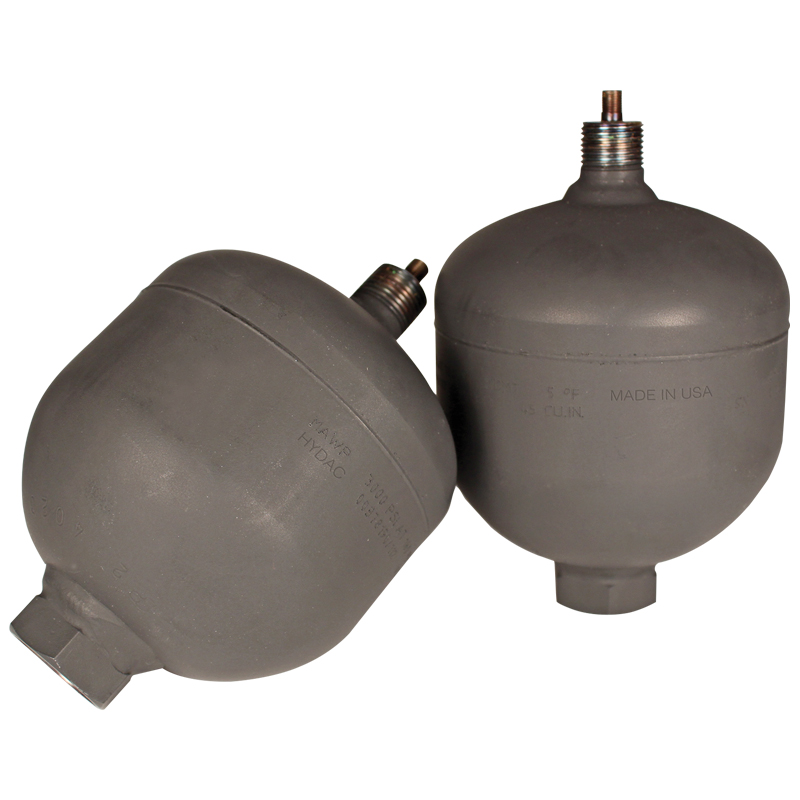

The fluid connection is G 1/2 BSPP Female. BSPP is shown as BSP in the thread attribute; any additional external metric thread is retained separately. The rechargeable gas valve uses an M28 × 1.5 interface. The listed flow and dimensional values are article-card data. Any fluid-qualified temperature attributes describe the diaphragm compound only; the complete assembly temperature envelope also depends on its materials and fluid. Gas precharge is not specified here and cannot be inferred from the model suffix. Mounting and commissioning must follow the SBO technical sheet; the factory range photograph is representative and may show a different size.
