Valve

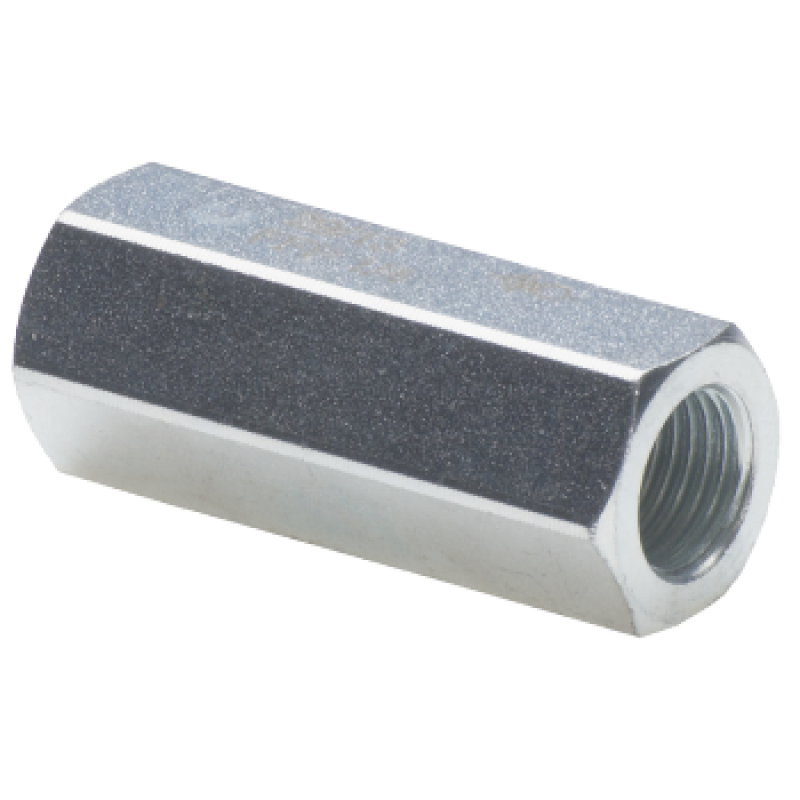

Hose break valve (female-female) FFP 1/4
Model: FFP 1/4
Hose break valve (female-female) FFP 1/4. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.
Hose break valve (female-female). Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Valve |
| Equipment family | Restrictor valves and hose breaks valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 25 |
| R1 | 1/4'' BSP |
| A | 48 |
| B | 12 |
| C | 19 |
