Heat exchanger INTER39024V 24 VDC, 150 l/min
Click image to enlarge

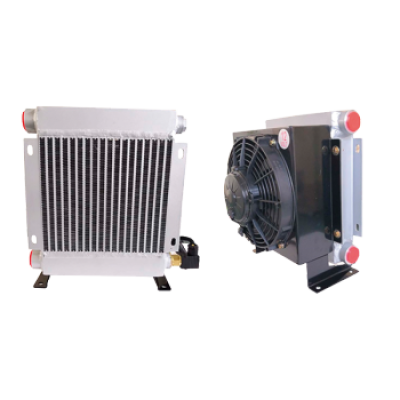

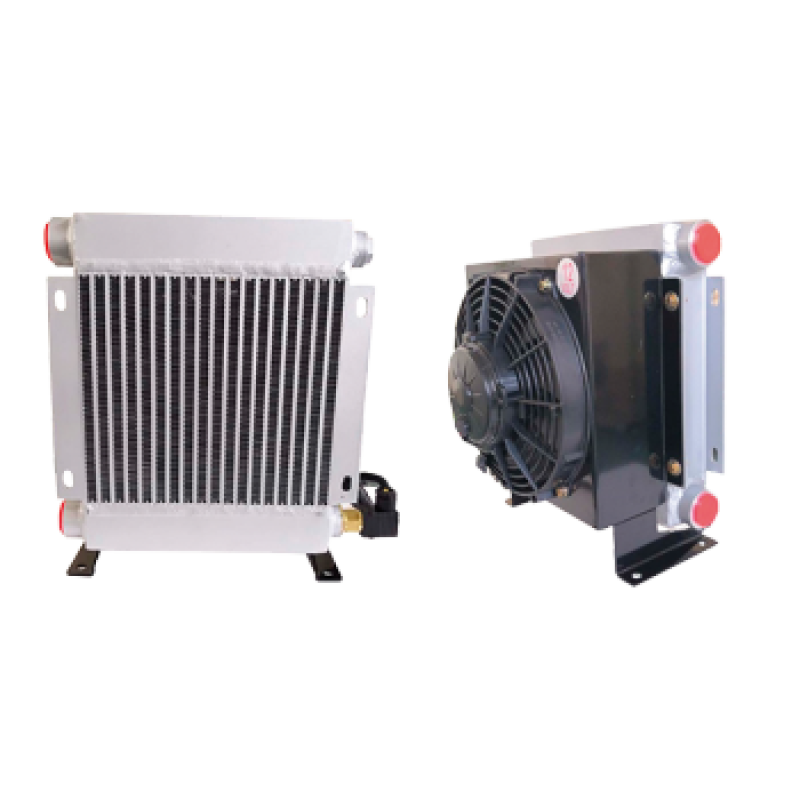

Oil-to-air heat exchanger

Heat exchanger INTER39024V 24 VDC, 150 l/min
Model: INTER39024V
  • Model:
    INTER39024V
Minimum oil flow (L/min)50
Maximum oil flow (L/min)150
Voltage specification24 V DC
Motor power (W)204
Connection specification1" BSP
Ingress protectionIP68
Full specifications ↓ Technical catalog · PDF

Description

INTER39024V is an oil-to-air heat exchanger. Its official model row lists an oil-flow range of 50–150 L/min, 24 V DC supply and 204 W motor power.

The power value in watts describes the electrical motor rating, rather than heat rejection capacity. The source supplies model-specific electrical, connection and cooling-unit data.

Technical documentation publisher: DICSA. Technical documentation: verification pending.

Technical documentation

GreenLine Spare parts GreenLine Heat exchangers. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Component type Oil-to-air heat exchanger
Minimum oil flow (L/min) 50
Maximum oil flow (L/min) 150
Voltage specification 24 V DC
Electrical supply DC
Voltage (V) 24
Motor power (W) 204
Connection specification 1" BSP
Ingress protection IP68
Catalog capacity (L) 5
Original specifications — unverified

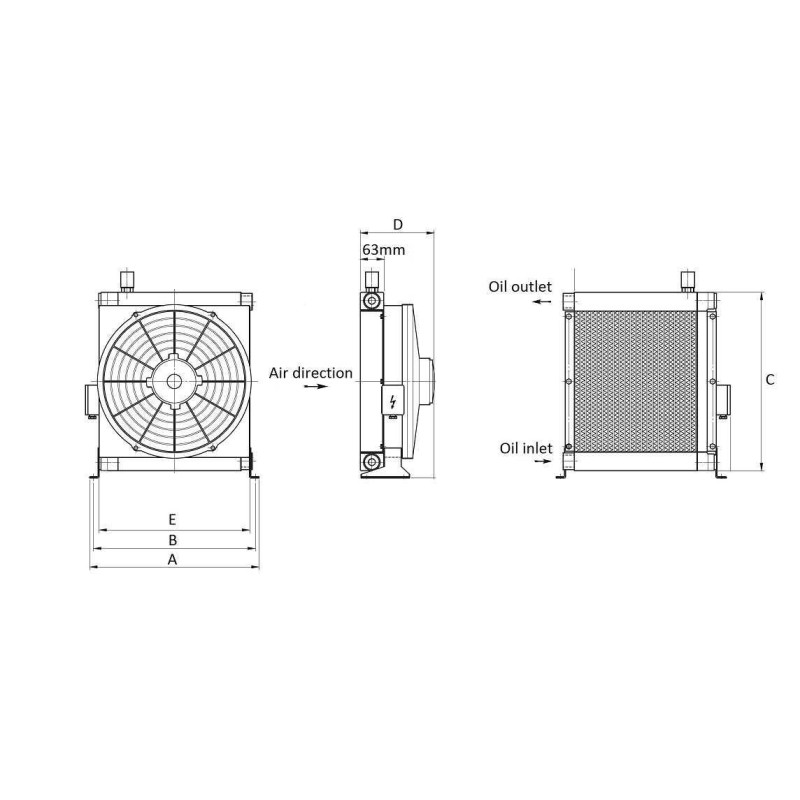

Unverified original: E 457
Unverified original: A 461
Unverified original: B 435
Unverified original: D 250
Unverified original: C 480
Unverified original: Airflow(m3/h) 2.6
Unverified original current (unit not confirmed) 8.5
Unverified original: Noise level db(A) 83
