Heat exchangers oil/air with thermostat- ICT series ICT39012VDC
Click image to enlarge

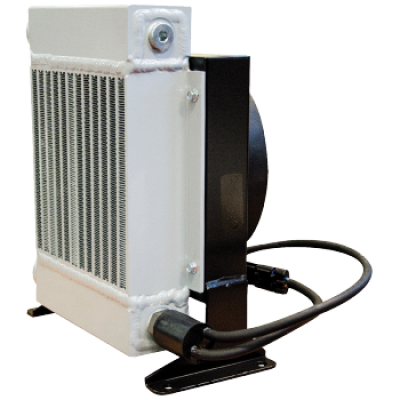

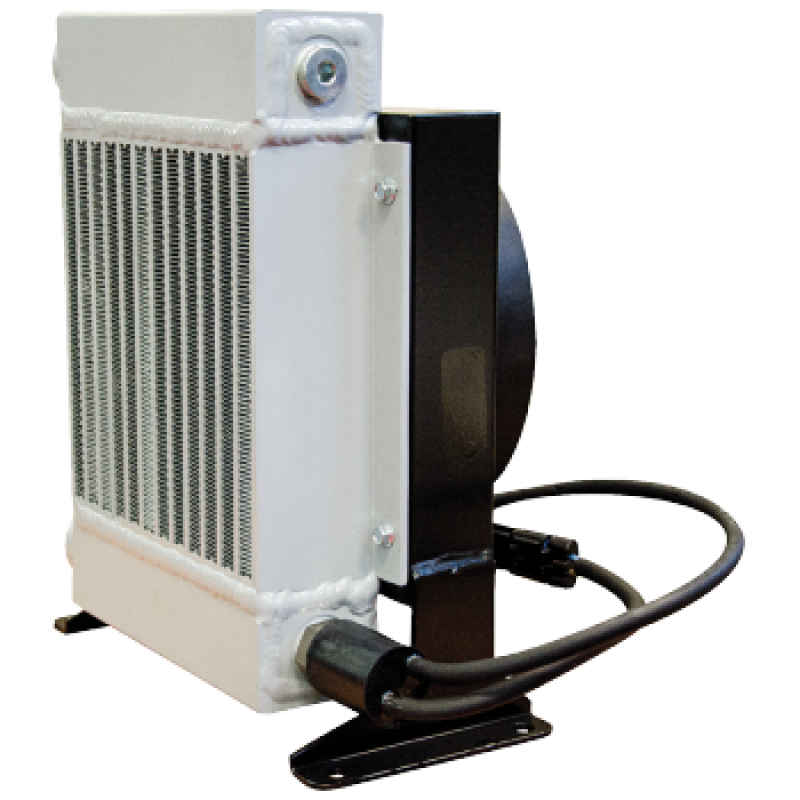

Oil-to-air heat exchanger

Heat exchangers oil/air with thermostat- ICT series ICT39012VDC
Model: ICT39012VDC
  • Model:
    ICT39012VDC
Minimum oil flow (L/min)50
Maximum oil flow (L/min)250
Voltage specification12 V DC
Motor power (W)210
Connection specification1" BSP
Ingress protectionIP68
Full specifications ↓ Technical catalog · PDF

Description

ICT39012VDC is an oil-to-air heat exchanger. Its official model row lists an oil-flow range of 50–250 L/min, 12 V DC supply and 210 W motor power.

The power value in watts describes the electrical motor rating, rather than heat rejection capacity. The source supplies model-specific electrical, connection and cooling-unit data.

The source motor power (w) is 210; the original value 240 is retained separately as unverified.

Technical documentation publisher: DICSA. Official model data (PDF).

Official technical documentation (PDF).

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Oil-to-air heat exchanger
Maximum working pressure (bar) 16
Minimum oil flow (L/min) 50
Maximum oil flow (L/min) 250
Air flow (m³/h) 2500
Voltage specification 12 V DC
Electrical supply DC
Voltage (V) 12
Motor power (W) 210
Connection specification 1" BSP
Thermostat contact temperature (°C) 47
Ingress protection IP68
Catalog capacity (L) 5
Catalog noise level (dB(A)) 85
Test pressure (bar) 25
Original specifications — unverified

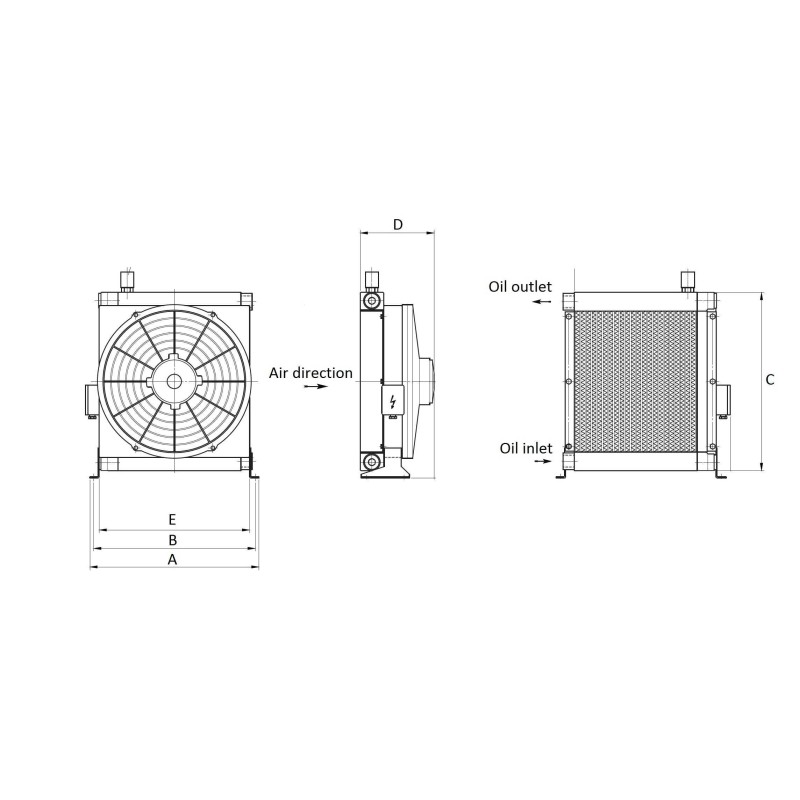

Unverified original: E 405
Unverified original: A 465
Unverified original: B 435
Unverified original: D 199
Unverified original: C 480
Unverified original motor power (W) 240
Unverified original current (unit not confirmed) 20
