Directional valve

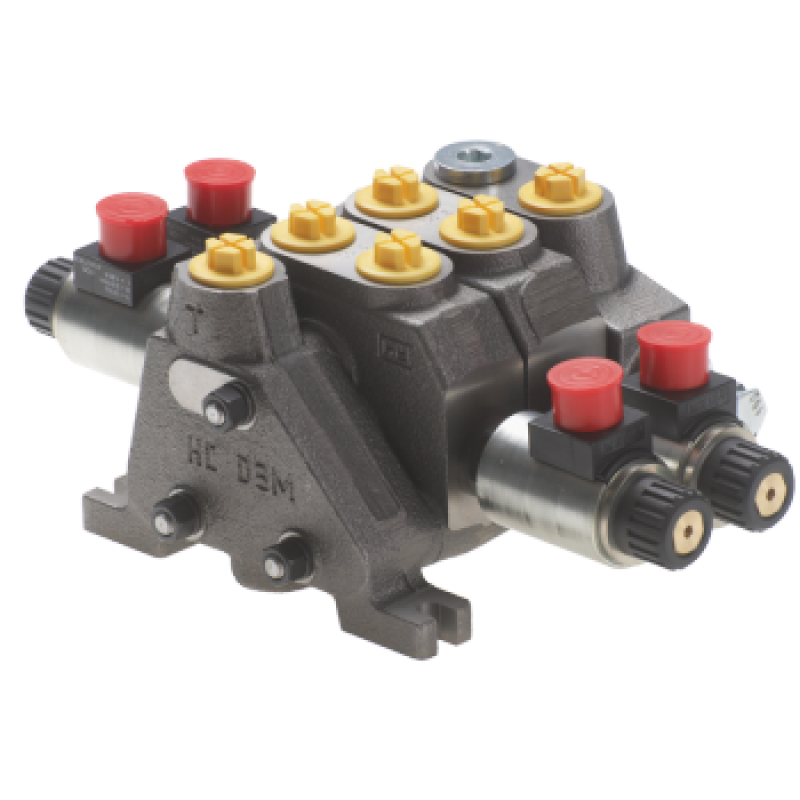

HCD3M electric operator with lever and spring return to center. Relief valve HCD3M/2 DD 12VDC
Model: HCD3M/2 DD 12VDC
HCD3M electric operator with lever and spring return to center. Relief valve HCD3M/2 DD 12VDC. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
HCD3M electric operator with lever and spring return to center. Relief valve. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Directional valve |
| Equipment family | Stackable control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 55 |
| Voltage, V | 12 VDC |
| R1 | 1/2''BSP |
| Nobodies | 2 |
| Type | D.E.-D.E. |
| Tierodlength | 170 |
| X | 119,5 |
| Y | 148 |
