HAWE HSE 12-2 hydraulic clamping cylinder, 12 mm piston, 2 mm stroke
Click image to enlarge
Hydraulic clamping cylinder

HAWE HSE 12-2 hydraulic clamping cylinder, 12 mm piston, 2 mm stroke
Model: HSE 12-2 · HAWE Hydraulik
Maximum operating pressure (bar)500
Stroke (mm)2
Bore diameter (mm)12
MountingScrew-in
Seal specificationStandard NBR or AU
ActionSingle acting with spring return
Full specifications ↓ Technical catalog · PDF

Description

The HAWE HSE 12-2 is a single-acting hydraulic clamping cylinder with spring return. Its piston diameter is 12 mm and its stroke is 2 mm. Hydraulic pressure extends the piston to apply a clamping force; the spring retracts it after pressure relief.

The screw-in construction is intended for installation in a fixture or base body. This execution uses the standard NBR or AU sealing specification, with a maximum operating pressure of 500 bar.

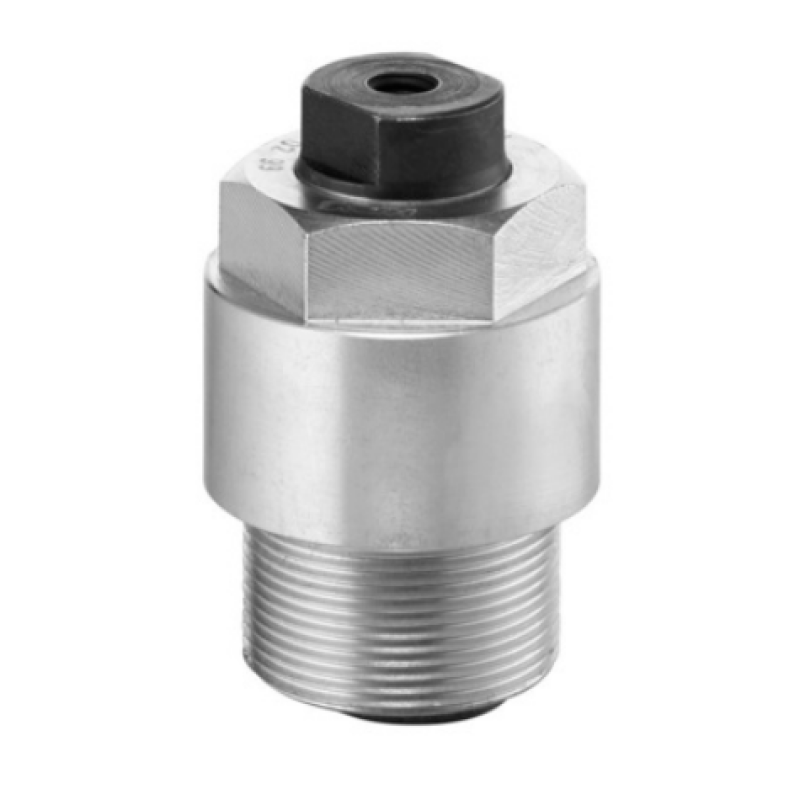

The photograph represents the HSE screw-in series; body size and stroke depend on the model.

Full specifications

Technical specifications
Component type Hydraulic clamping cylinder
Maximum operating pressure (bar) 500
Stroke (mm) 2
Bore diameter (mm) 12
Mounting Screw-in
Seal specification Standard NBR or AU
Manufacturer HAWE Hydraulik
Manufacturer part number HSE 12-2
Technical specifications
Action Single acting with spring return
