HAWE HD 13 hand pump, 13 cm³/stroke
Click image to enlarge
Hand pump

HAWE HD 13 hand pump, 13 cm³/stroke
Model: HD 13 · HAWE Hydraulik
Displacement per stroke (cm³/stroke)13
Maximum pressure at port P (bar)350
MountingPipe connection
Actuation torque (Nm)250
Seal specificationStandard NBR or AU
Full specifications ↓ Technical catalog · PDF

Description

The HAWE HD 13 is a double acting hand pump for manually supplying hydraulic pressure and flow. Its displacement is 13 cm³/stroke, with a maximum pressure of 350 bar at port P.

This standard execution uses pipe connection and the standard NBR or AU sealing specification. No additional valve function is specified. The listed actuation torque is 250 Nm.

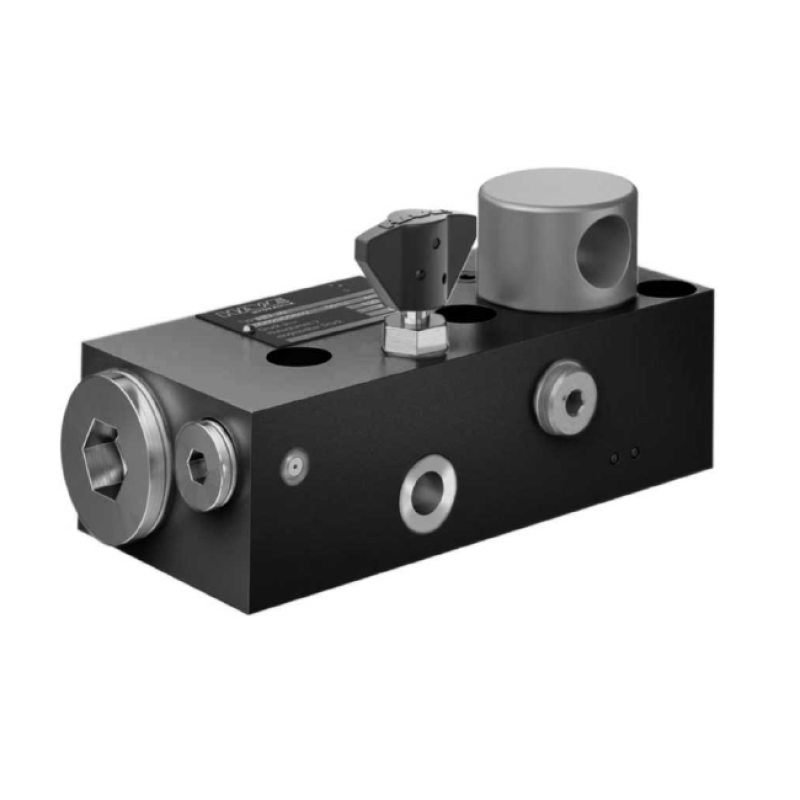

The photograph is representative of the H, HD and HE series. Lever, valve and housing details can differ between executions.

Full specifications

Technical specifications
Component type Hand pump
Maximum pressure at port P (bar) 350
Actuation torque (Nm) 250
Mounting Pipe connection
Seal specification Standard NBR or AU
Additional function None
Manufacturer HAWE Hydraulik
Manufacturer part number HD 13
Technical specifications
Displacement per stroke (cm³/stroke) 13
Pump action Double acting
