Valve

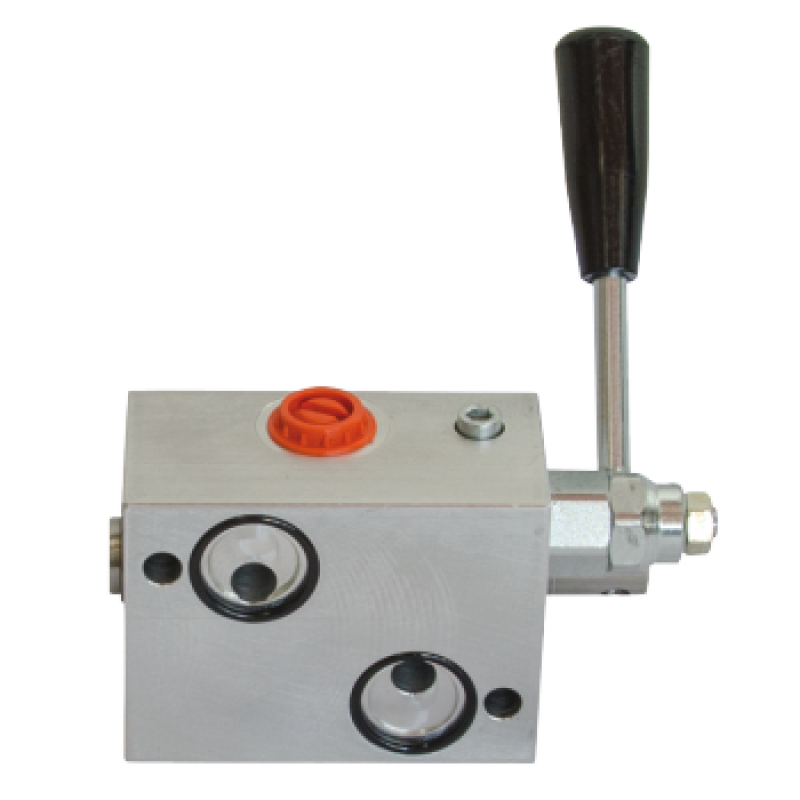

Hand control valve for MOMP/MOMR/MOMH, double acting with pressure relief valve BDR1205/25A
Model: BDR1205/25A
Maximum pressure (bar)210
Port 1 thread1/2" BSP
Hand control valve for MOMP/MOMR/MOMH, double acting with pressure relief valve BDR1205/25A. The valve provides a pressure-relief path in the circuit. Use exact model documentation for its operating limits.
Model specifications: Maximum pressure (bar): 210.
Manual control valve for MOMP/MOMR/MOMH, double acting with pressure relief valve. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 210 |
| Port 1 thread | 1/2" BSP |
| Equipment family | Hand control valve for motors |
| Original specifications - unverified | |
| Pressure, bar | 180 bar |
| Working pressure, bar | 30-250 bar |
| Flow max, l/min | 50 |
| R1 | 1/2'' BSP |
