Hydraulic component

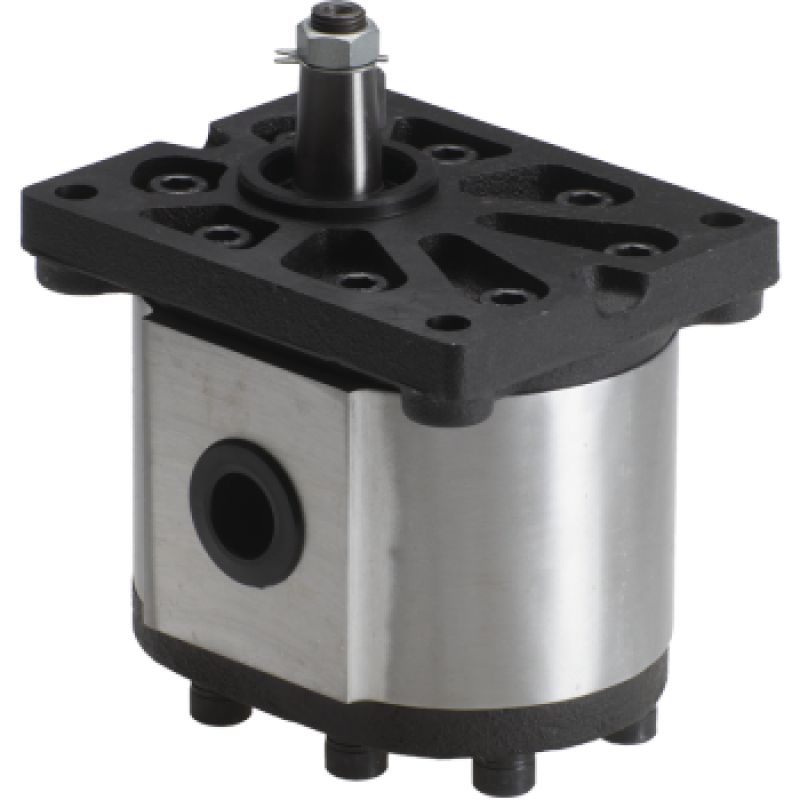

Gr.III Gear motor reversible/Eur.flange/Tapered shaft 1:8 /Side ports type threaded MRTD332001

Model: MRTD332001
Maximum pressure (bar)230
Port 1 thread3/4" BSP
Displacement (cm³/rev)32

Description

Gr.III Gear motor reversible/Eur.flange/Tapered shaft 1:8 /Side ports type threaded MRTD332001. This component belongs to the stated fluid-power family. Check the exact installation and mating arrangement before selection.

Model specifications: Maximum pressure (bar): 230.

Technical documentation

Gr.III Gear motor reversible/Eur.flange/Tapered shaft 1:8 /Side ports type threaded. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Hydraulic component
Maximum pressure (bar) 230
Displacement (cm³/rev) 32
Port 1 thread 3/4" BSP
Port 2 thread 3/4" BSP
Equipment family Group III
Original specifications - unverified
Max. pressure, bar 230
Working pressure, bar 200
Displacement, cm3/rev 32
R1 3/4'' BSP
R2 3/4'' BSP
R.P.M. 3000
A 137
B 68
