Hydraulic component

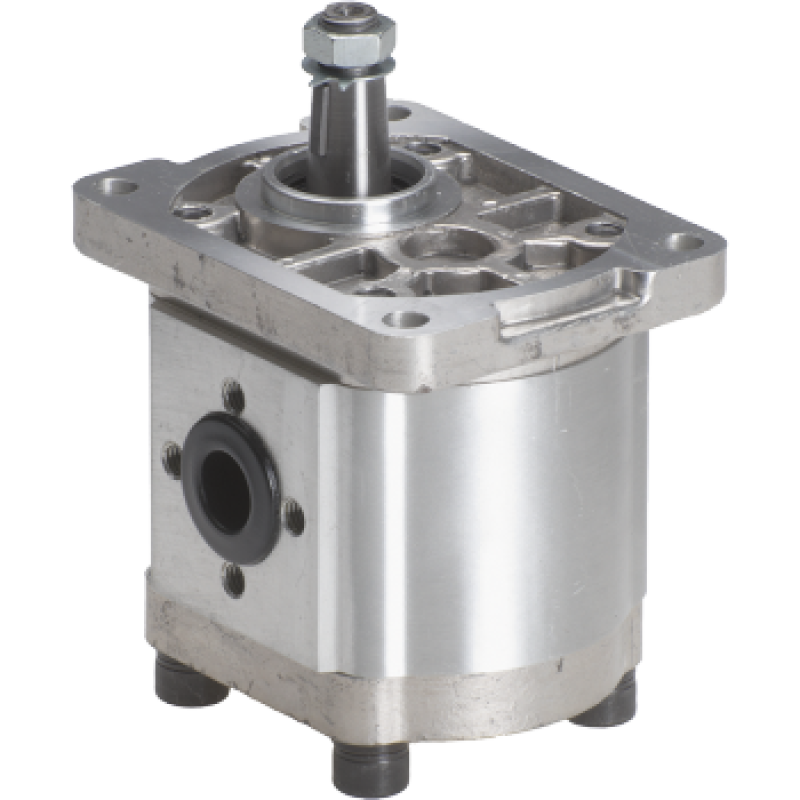

Gr.II Gear motor reversible/Eur.flange/Tapered shaft 1:8 /Side ports type Eur. MRTD212002
Model: MRTD212002
Maximum pressure (bar)250
Displacement (cm³/rev)12
Gr.II Gear motor reversible/Eur.flange/Tapered shaft 1:8 /Side ports type Eur. MRTD212002. This component belongs to the stated fluid-power family. Check the exact installation and mating arrangement before selection.
Model specifications: Maximum pressure (bar): 250.
Gr.II Gear motor reversible/Eur.flange/Tapered shaft 1:8 /Side ports type Eur.. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Hydraulic component |
| Maximum pressure (bar) | 250 |
| Displacement (cm³/rev) | 12 |
| Equipment family | Group II |
| Catalog inlet flange dimension (mm) | 40 |
| Catalog outlet flange dimension (mm) | 40 |
| Original specifications - unverified | |
| Max. pressure, bar | 250 |
| Working pressure, bar | 200 |
| Displacement, cm3/rev | 12 |
| R.P.M. | 3500 |
| ØPRESSURE(mm) | 40 |
| ØSPIRATIO(mm) | 40 |
| A | 110 |
| B | 52 |
