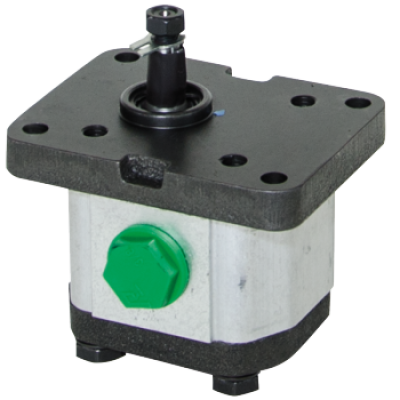

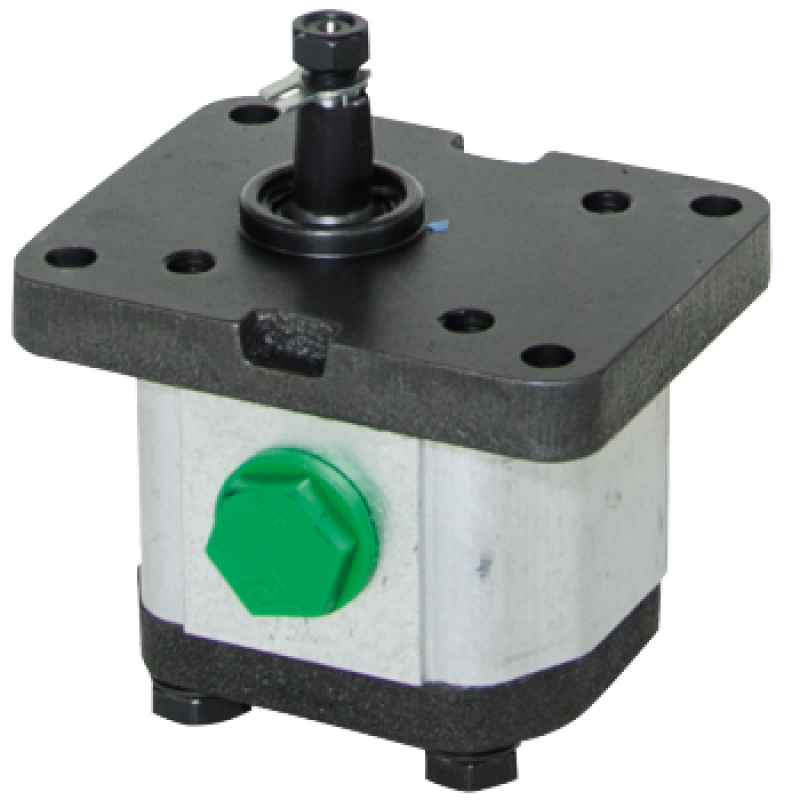

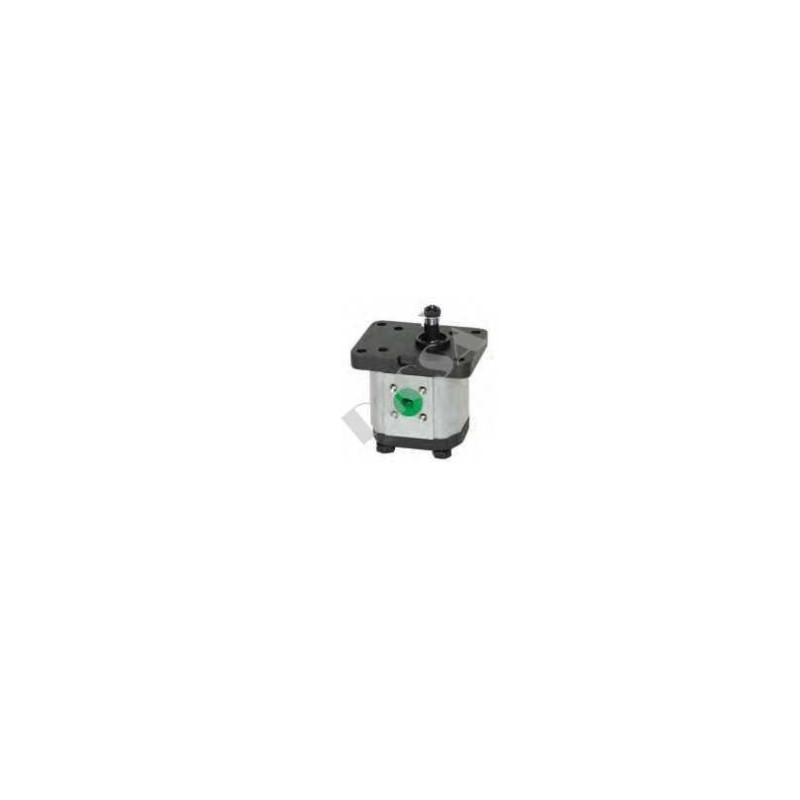

Gear pump 1LO3DE10R (2 cm3/rev)
Click image to enlarge

Gear pump 1LO3DE10R (2 cm3/rev)
Model: 1LO3DE10R · ROQUET
  • Manufacturer:
    ROQUET
  • Model:
    1LO3DE10R
Displacement (cm³/rev)2
Working pressure (bar)275
Pump group1
Rotationclockwise (viewed facing shaft end)
Drive shafttype E, tapered 1:8
Inlet connectiontype R threaded side port
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

1LO3DE10R is a hydraulic gear pump. The specifications below are matched to the exact model in the linked official technical documentation.

Source notes

  • The ROQUET catalogue uses the series code 1L0 and a decimal comma. The terminal R denotes threaded ports; rotation is specified by the D after the nominal flow code.

Full specifications

Technical specifications
Working pressure (bar) 275
Pump group 1
Displacement (cm³/rev) 2
Flow at reference conditions (L/min) 3
Flow reference speed (rpm) 1500
Flow reference pressure (bar) 0
Rotation clockwise (viewed facing shaft end)
Maximum shaft driving torque (N·m) 30
Speed at continuous pressure (rpm) 5000
Drive shaft type E, tapered 1:8
Inlet connection type R threaded side port
Outlet connection type R threaded side port
Inlet thread 3/8" BSP
Outlet thread 1/4" BSP
Mounting flange type 10
Maximum speed (rpm) 6000
Pump series L0
Intermittent pressure (bar) 300
Intermittent pressure duration (s) 5
Manufacturer model code 1L03DE10R
Mounting pilot diameter (mm) 25.35
Legacy dimensions — revision unverified
Max.Peak pressure 300
Unverified original port/flange value 261 1/4'' BSP
Unverified original port/flange value 455 3/8'' BSP
